The Mini Industrial 6-Port Gigabit PoE Solar Switch is an industrial Ethernet switch designed for power, data and surveillance networks in harsh environments. It provides five 10/100/1000Base-T RJ45 ports and one 100/1000Base-X SFP port for Gigabit Ethernet connectivity over copper and fiber. The flexible PoE design supports multiple power requirements, including standard PoE, Hi-PoE and passive 24V PoE.
Ports 1–2 support 802.3at PoE/Hi-PoE with up to 30W per port, while Ports 3–4 support Hi-PoE with up to 50W per port. Port 5 supports passive 24V PoE for compatible network devices. The switch features a 9–48VDC wide-range power input with an integrated Power Booster, making it suitable for low-voltage power supply environments such as solar-powered surveillance and renewable energy systems.
The switch supports Full/Half-duplex, Auto-Negotiation, Auto MDI/MDIX, IEEE 802.3az Energy Efficient Ethernet (EEE), Store-and-Forward switching and 16K Jumbo Frames. Its compact fanless design, rugged IP40 aluminum housing, DIN-Rail/wall mounting options and -40°C to +75°C operating temperature make it suitable for reliable industrial deployments.
- 5×10/100/1000Base-T RJ45 ports + 1×100/1000Base-X SFP port
- Gigabit Ethernet transmission up to 1000Mbps
- RJ45 ports support Full/Half-duplex, Auto-Negotiation and Auto MDI/MDIX
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Supports Store-and-Forward switching mode
- 9–48VDC wide-range power input with integrated Power Booster
- Port 1–2: 10/100/1000Mbps PoE/Hi-PoE, up to 30W per port
- Port 3–4: 10/100/1000Mbps Hi-PoE, up to 50W per port
- Port 5: 10/100/1000Base-T passive 24V PoE
- Supports 16K Bytes Jumbo Frames
- Supports DIN-Rail and wall-mount installation
- Rugged IP40 aluminum housing
- Fanless design with low power consumption
- -40°C to +75°C (-40°F to +167°F) operating temperature

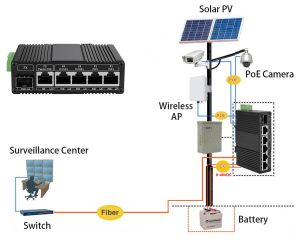

- Suitable for industrial control, surveillance and solar-powered network applications
