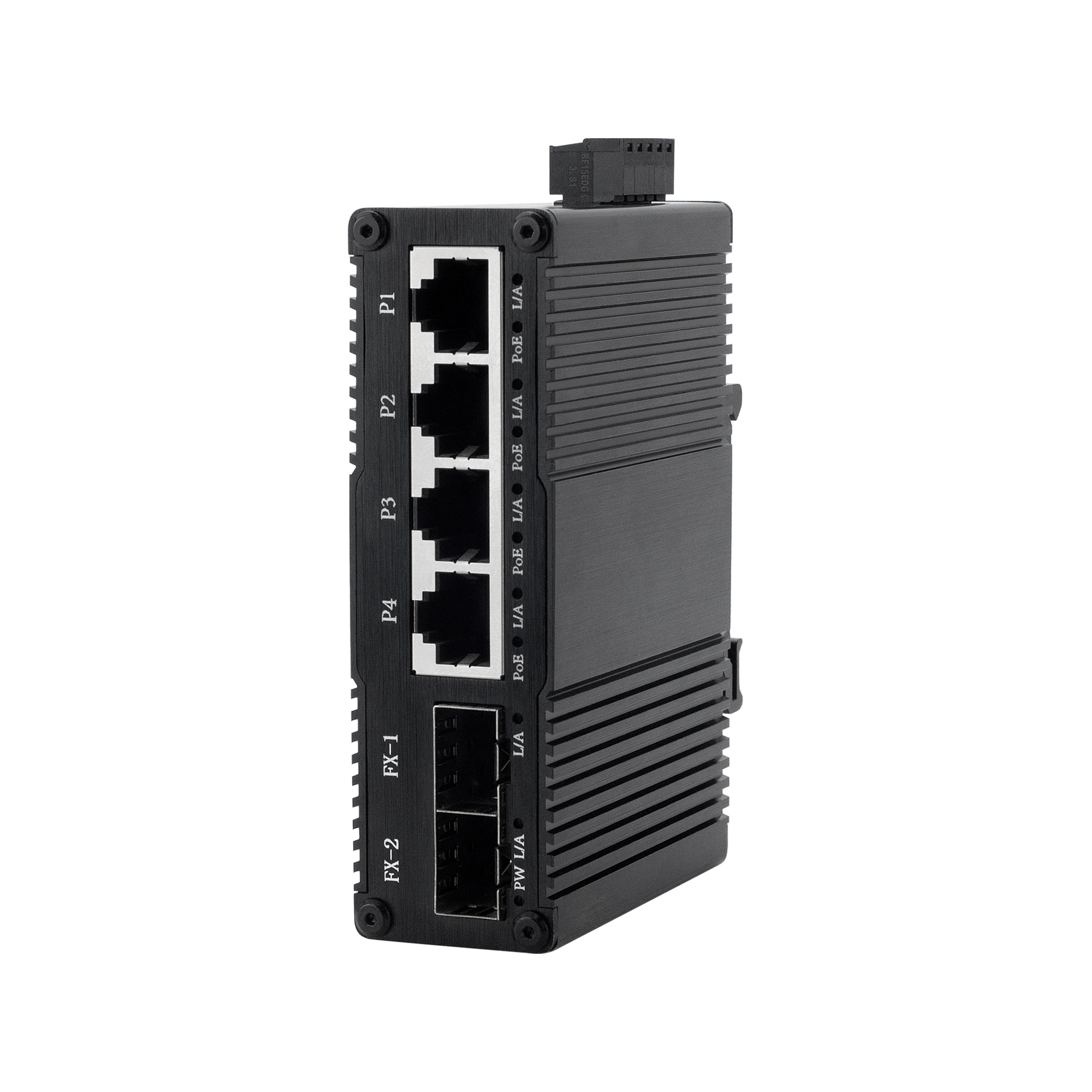

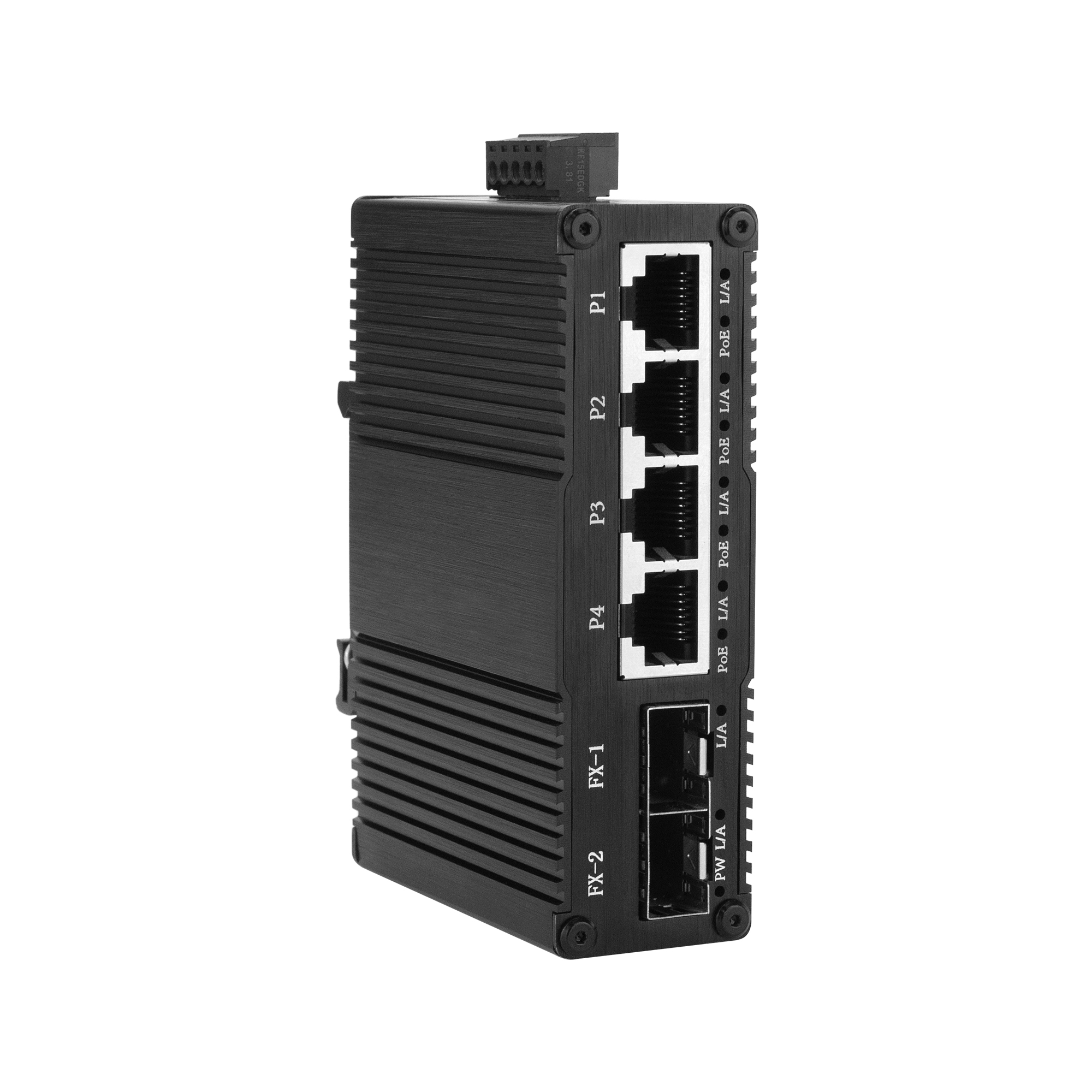

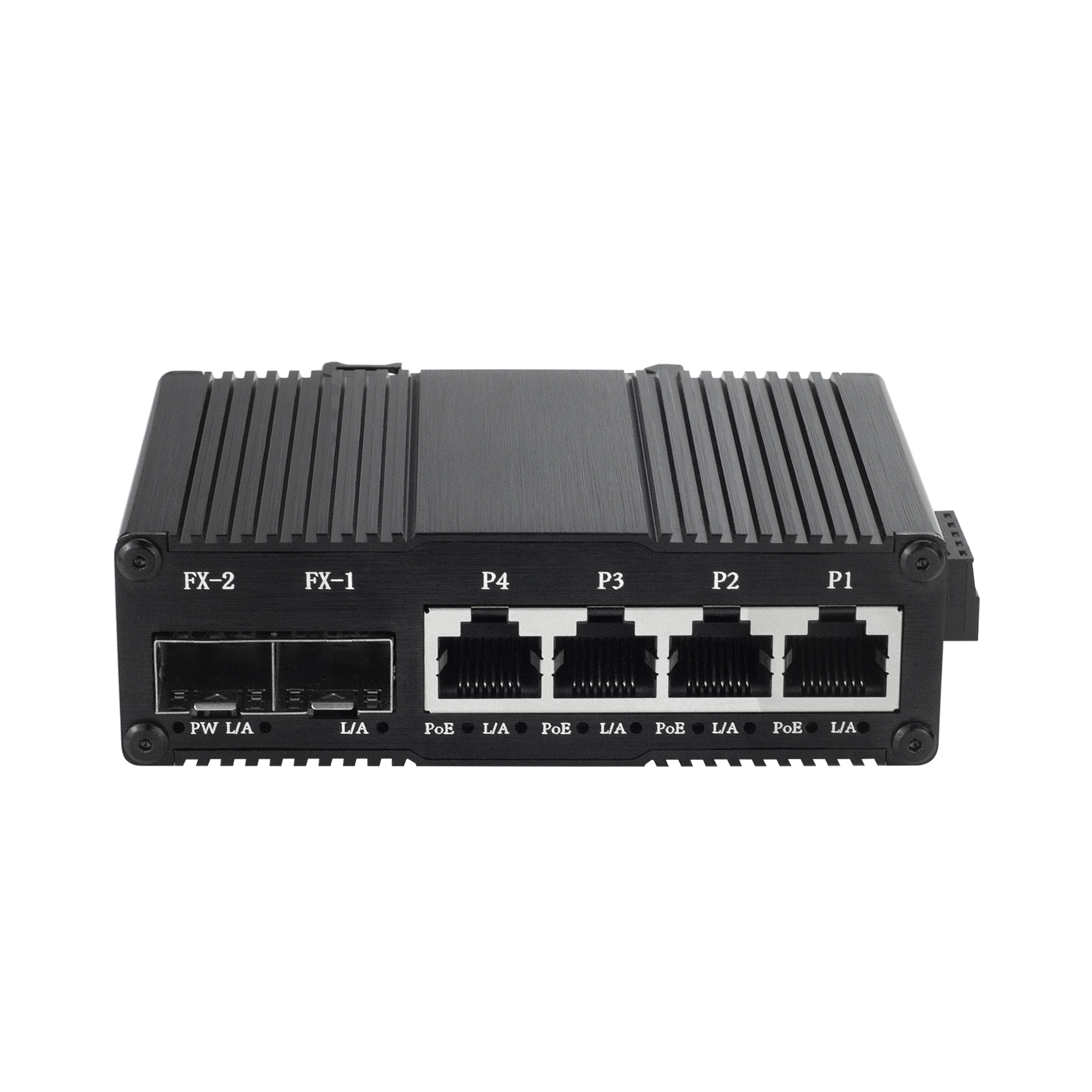

The Mini Industrial 6-Port Gigabit PoE Fiber Switch is a compact industrial Ethernet switch designed for reliable data transmission, PoE connectivity and long-distance fiber network applications. It provides four 10/100/1000Base-T RJ45 ports with IEEE 802.3at PoE+ support and two 1000Base-X SFP slots for flexible fiber optic network deployment.
The four Gigabit RJ45 ports support Auto-Negotiation, Auto MDI/MDIX and IEEE 802.3at PoE+ power delivery, while the two SFP slots support automatic detection of compatible SFP modules for high-speed fiber connectivity. The switch also supports IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3x Flow Control and Store-and-Forward switching to provide stable and efficient Ethernet transmission.
Designed for industrial networks, the switch supports STP/RSTP/MSTP redundancy protocols based on IEEE 802.3D/W/S, helping improve network availability in ring and redundant network architectures. Dual redundant 9–56VDC power inputs provide flexible and reliable power supply for critical installations. Its fanless IP40 metal housing, low power consumption, DIN-Rail/wall-mount installation and wide -40°C to +80°C operating temperature range make it suitable for demanding industrial and outdoor environments.
- 4×10/100/1000Base-T RJ45 ports with IEEE 802.3at PoE+ support
- 2×1000Base-X SFP slots with automatic SFP detection
- Gigabit Ethernet transmission up to 1000Mbps
- Auto-Negotiation and Auto MDI/MDIX
- Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
- Supports IEEE 802.3x Flow Control
- Supports Store-and-Forward switching mode
- Supports IEEE 802.3D/W/S STP/RSTP/MSTP network redundancy protocols
- Supports large backplane bandwidth and exchange cache for line-rate forwarding
- PoE available as an optional configuration
- 9–56VDC wide-range power input
- Supports redundant dual power inputs
- Rugged IP40 high-strength metal housing
- Fanless design with low power consumption

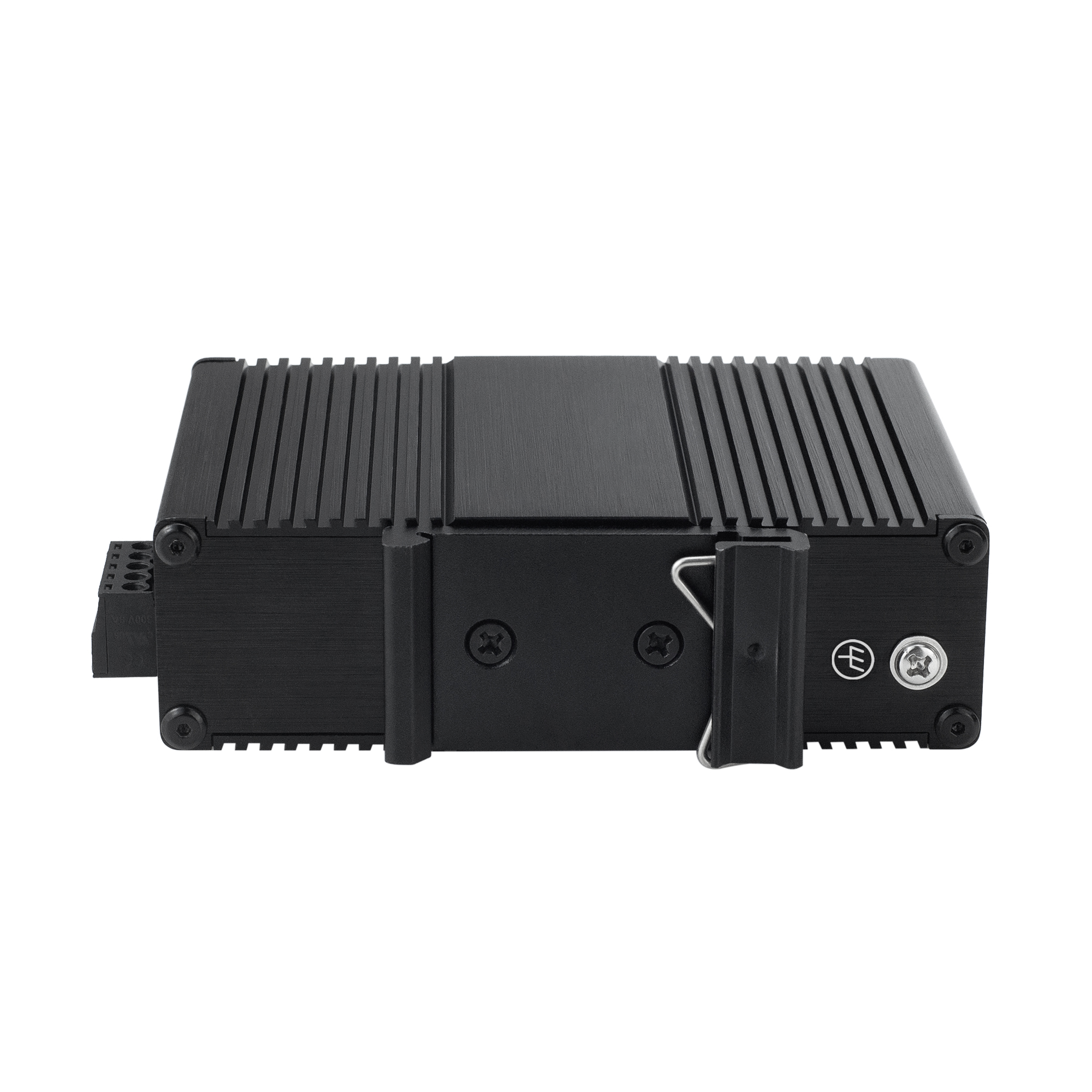

- Supports DIN-Rail and wall-mount installation
- -40°C to +80°C (-40°F to +176°F) operating temperature
- Suitable for industrial networking, intelligent transportation systems, utilities and other harsh-environment applications
