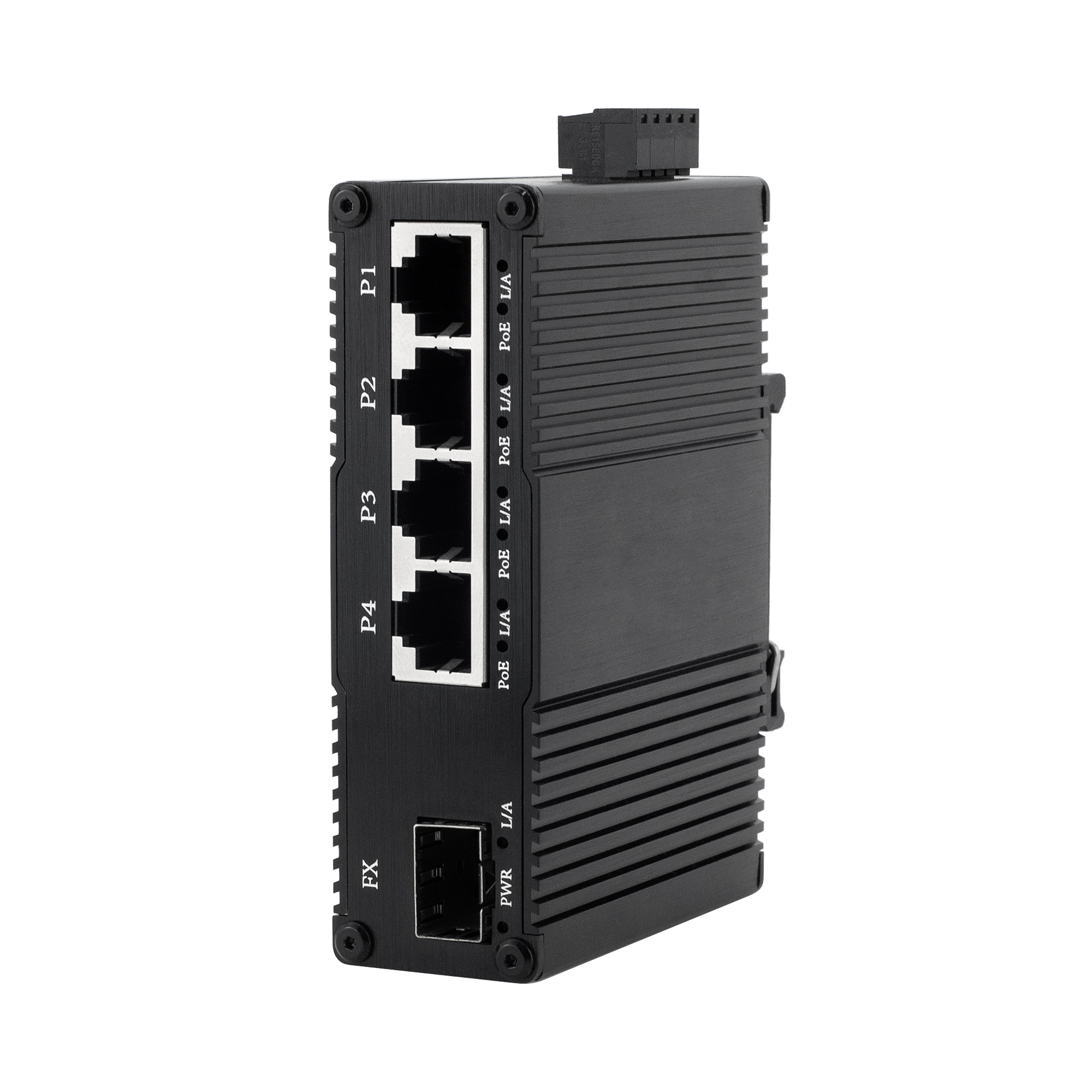

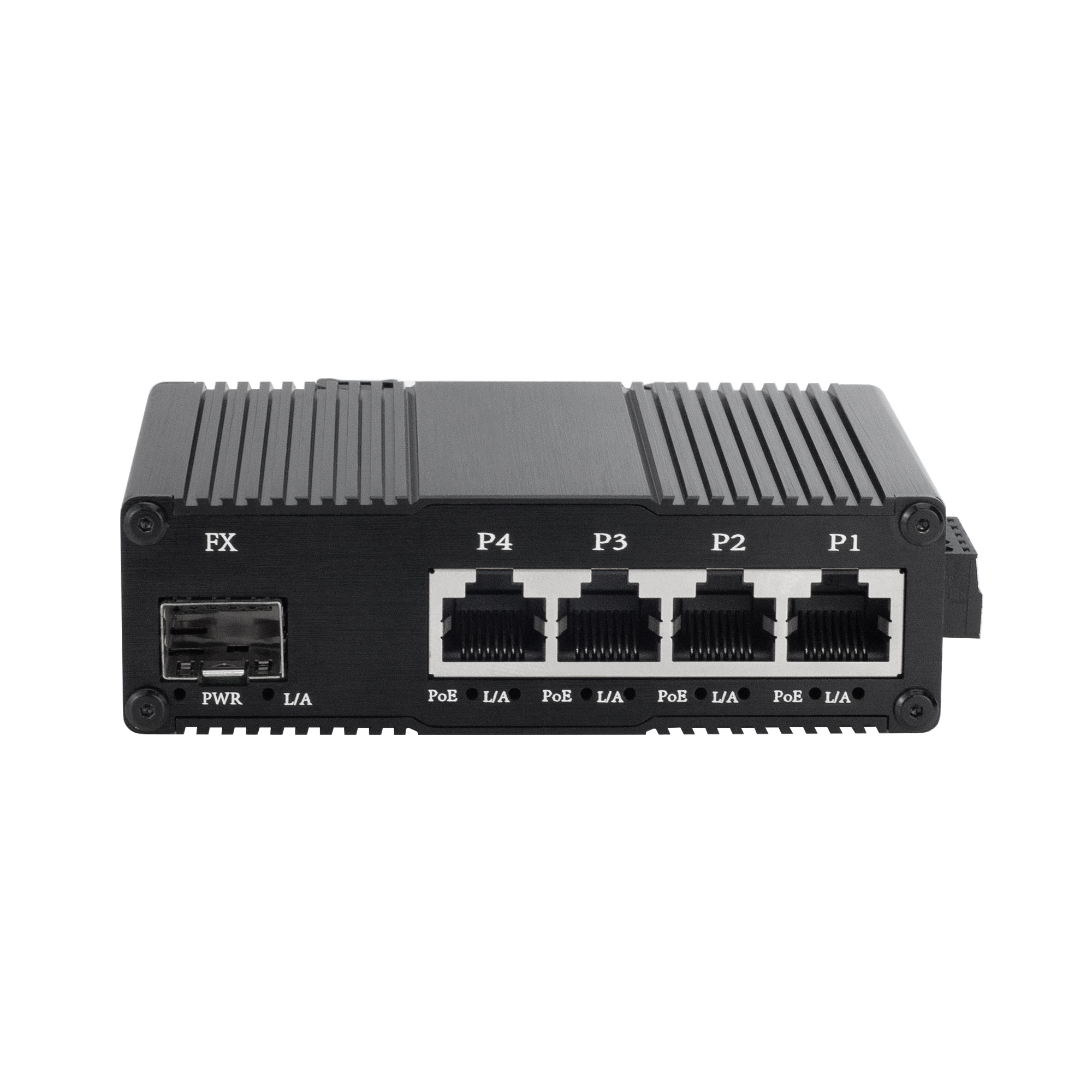

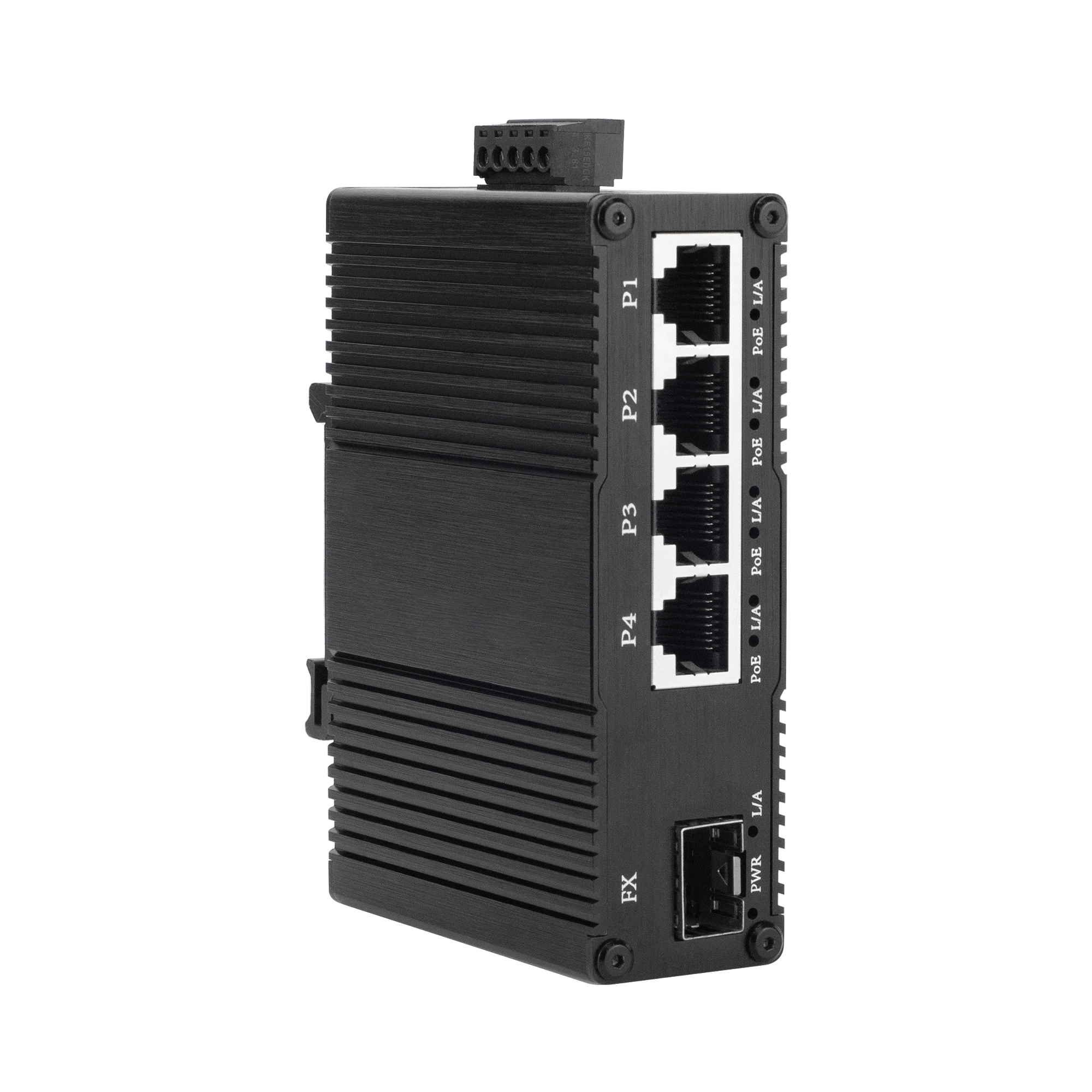

The Mini Industrial 5-Port Gigabit Ethernet Switch is a compact industrial Ethernet switch designed specifically for industrial control and harsh-environment network applications. It provides four 10/100/1000Base-T RJ45 ports and one 1000Base-X fiber port, enabling reliable Gigabit Ethernet connectivity over copper and fiber networks.
The switch supports Full/Half-duplex operation, Auto-Negotiation, Auto MDI/MDIX and IEEE 802.3az Energy Efficient Ethernet (EEE). It also supports Store-and-Forward switching and 9K Jumbo Frames for efficient and stable data transmission. The industrial ring-oriented design supports multiple IEEE industrial Ethernet protocols and provides reliable network communication for demanding industrial applications.
Dual redundant 11–56VDC power inputs provide flexible and reliable power supply for critical network installations. Featuring a fanless aluminum housing, IP40 protection, low power consumption and a wide operating temperature range of -40°C to +80°C, the switch is suitable for industrial environments where high reliability and easy maintenance are required.
- 4×10/100/1000Base-T RJ45 ports + 1×1000Base-X fiber port
- 10/100/1000Mbps RJ45 ports support Full/Half-duplex, Auto-Negotiation and Auto MDI/MDIX
- Gigabit Ethernet transmission up to 1000Mbps
- Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
- Supports Store-and-Forward switching mode
- Supports 9K Bytes Jumbo Frames
- Supports redundant dual 11–56VDC power inputs
- Supports the listed IEEE 802.1p/Q/W/S/X and IEEE 802.3D/W/S standards
- Compact fanless design with low power consumption
- IP40-rated aluminum housing

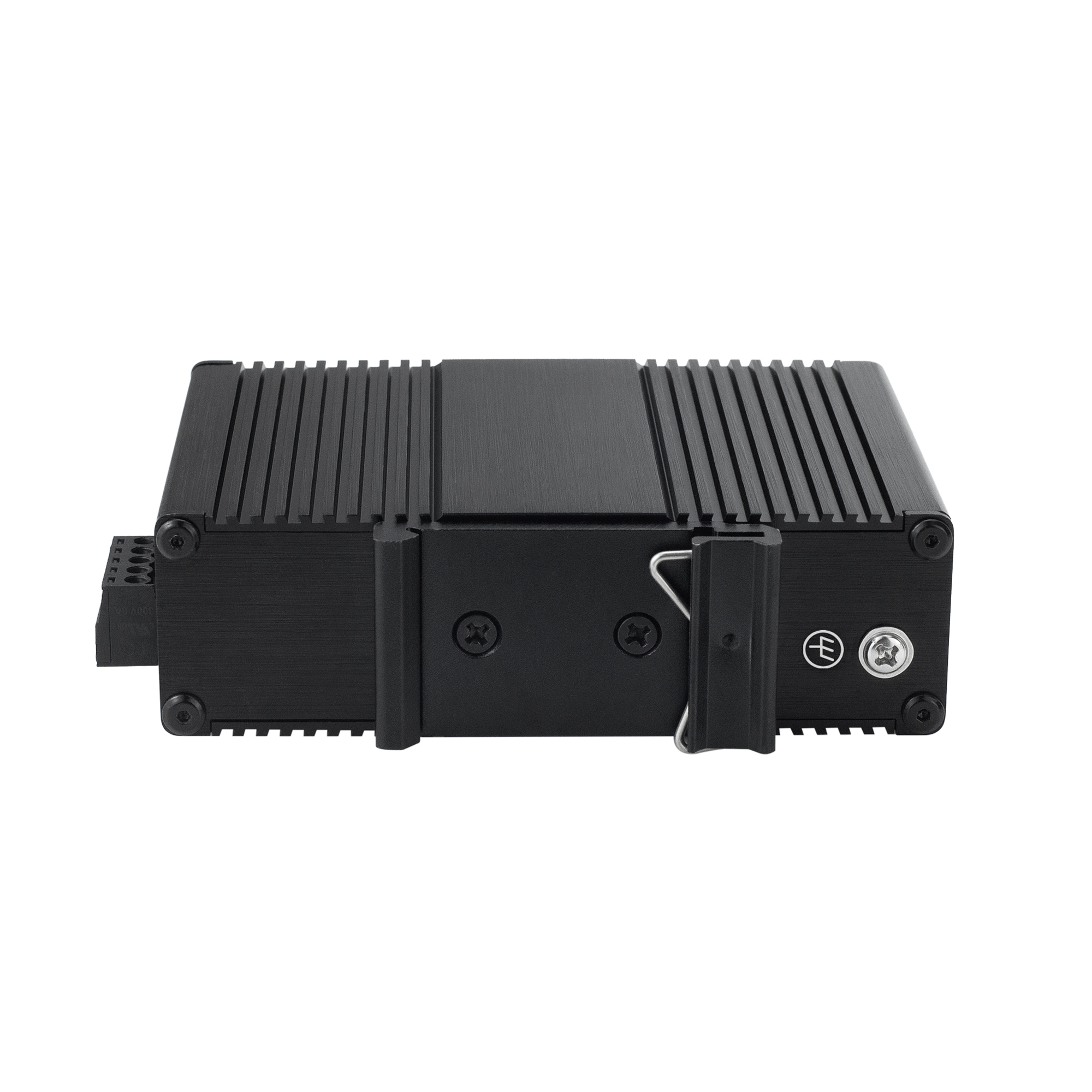

- Supports DIN-Rail installation
- -40°C to +80°C (-40°F to +176°F) operating temperature
- Designed for industrial control and harsh-environment Ethernet networks
