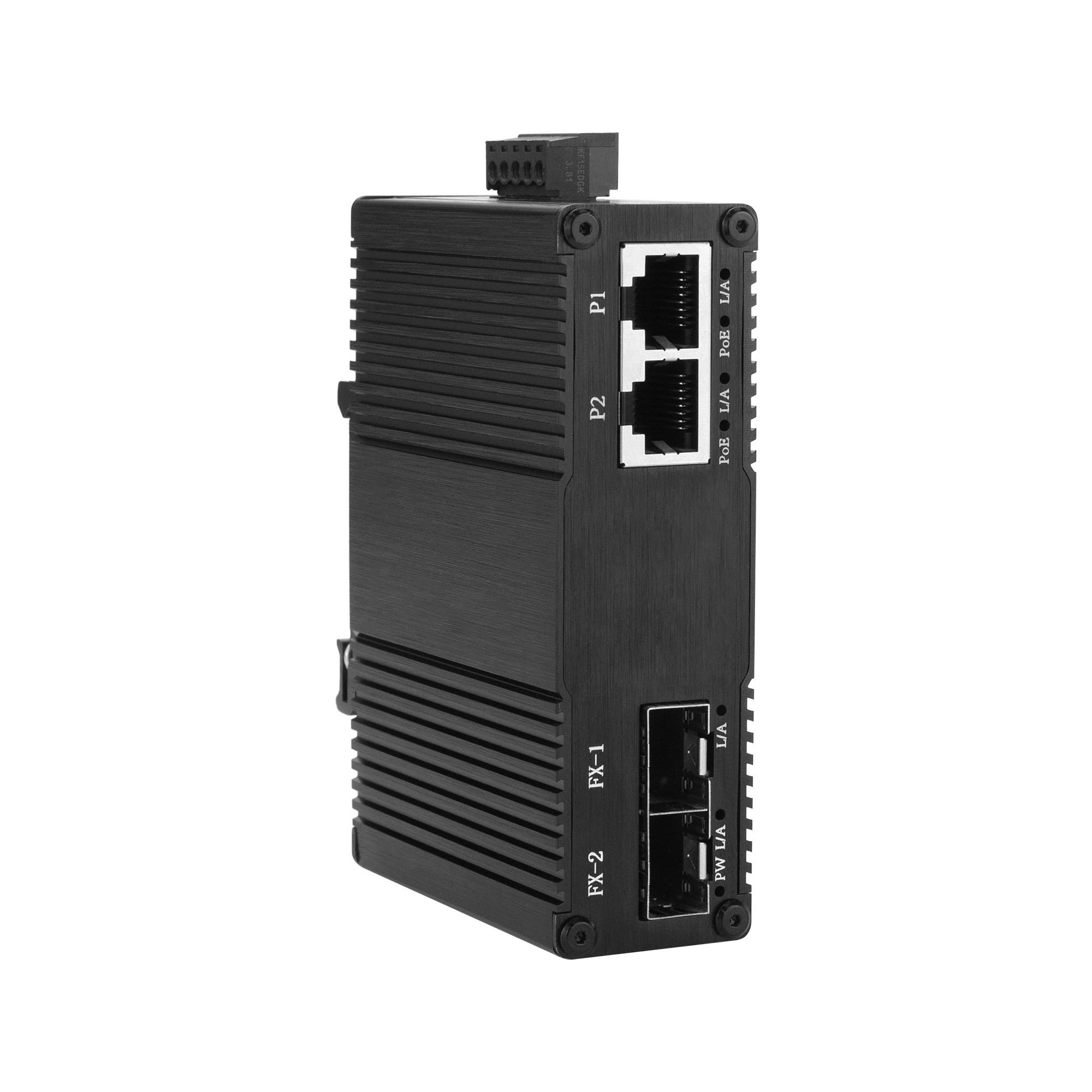

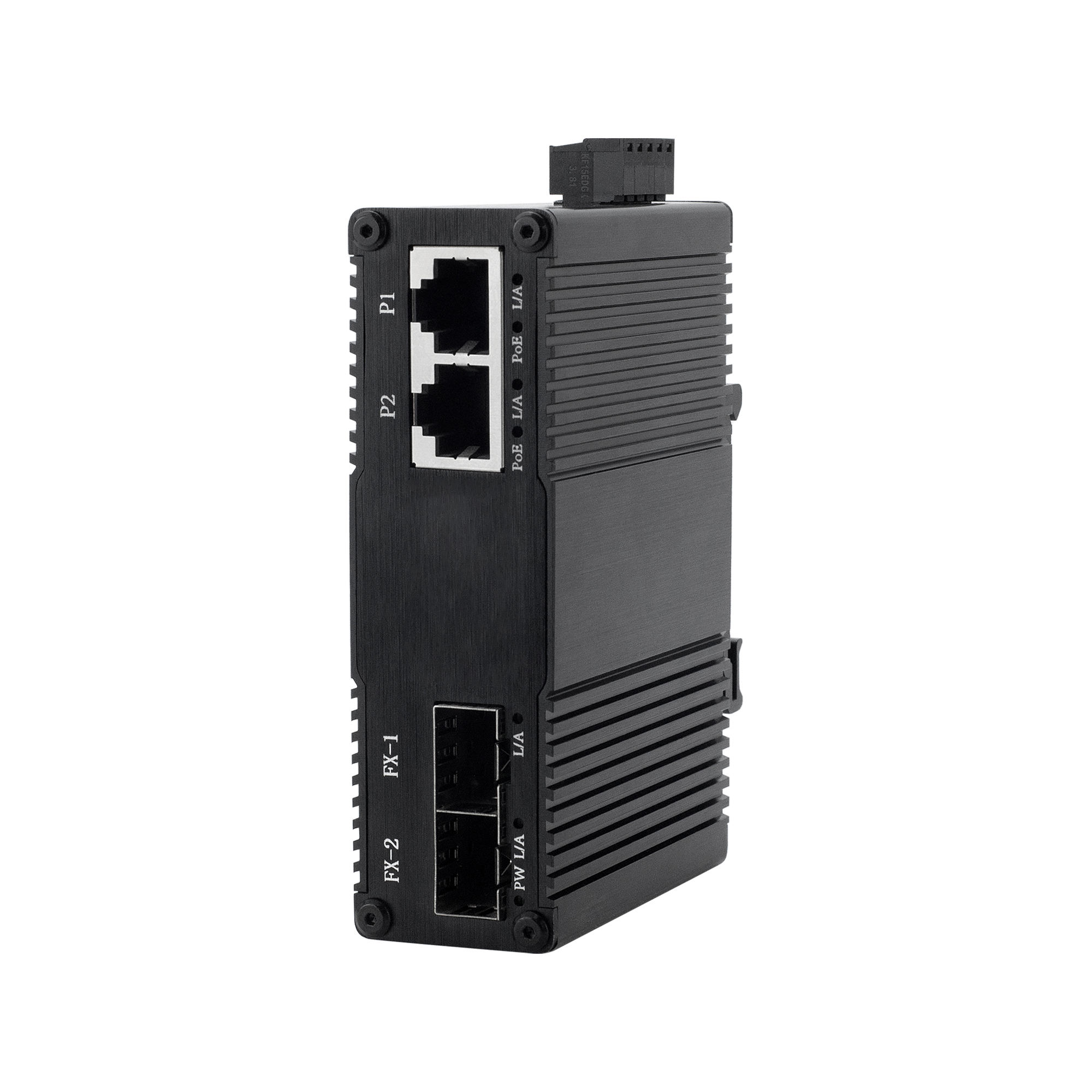

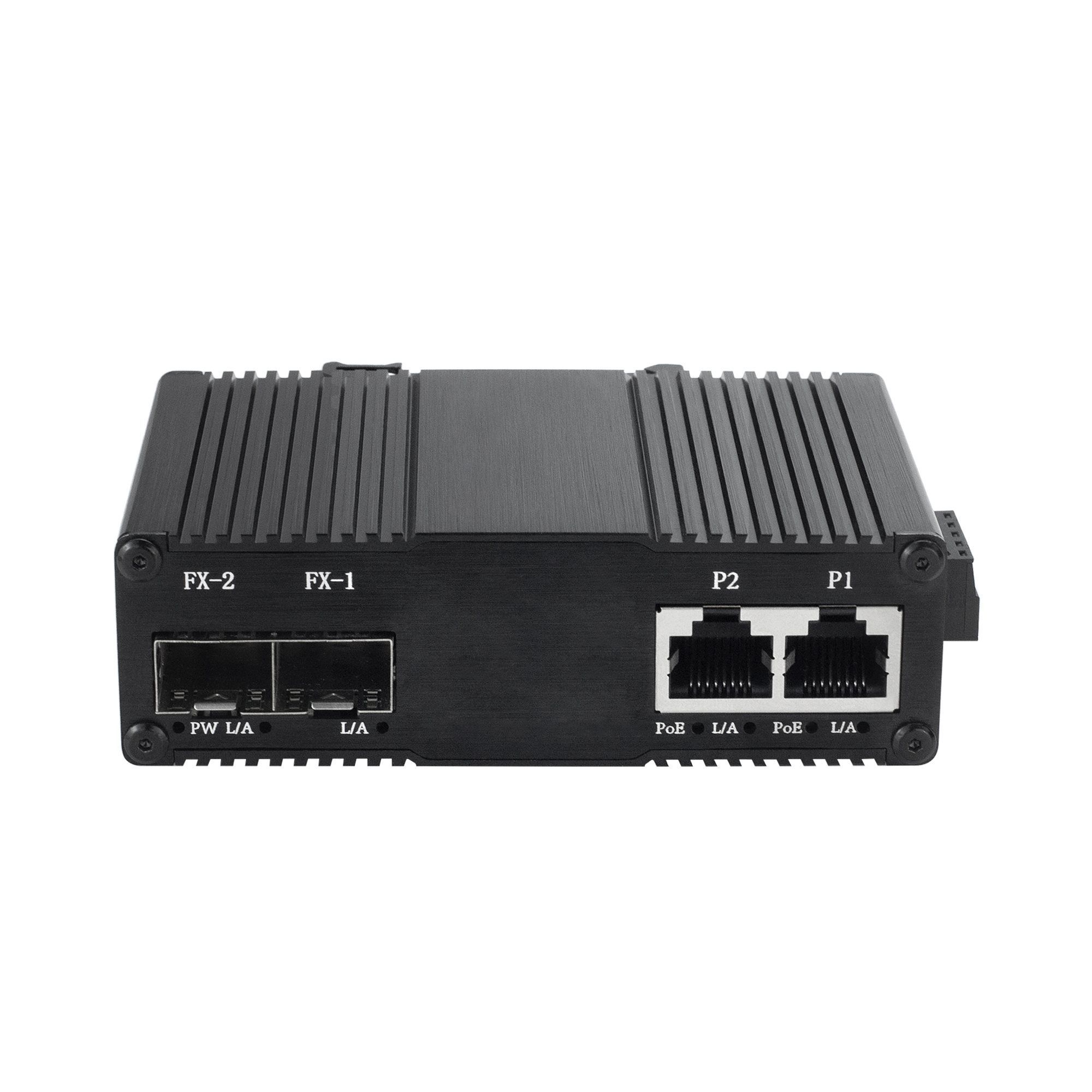

The Mini Industrial 4-Port Gigabit PoE Fiber Switch is a compact industrial Ethernet switch designed for reliable data transmission, PoE power delivery and long-distance fiber optic networking. It provides two 10/100/1000Base-T RJ45 ports with IEEE 802.3at PoE+ functionality and two 1000Base-X SFP slots with automatic SFP type detection, enabling flexible copper and fiber network connections.
The switch supports Auto-Negotiation, Auto MDI/MDIX, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3x Flow Control and Store-and-Forward switching. It also supports the IEEE 802.3D/W/S standardized STP/RSTP/MSTP protocols for network redundancy and improved reliability in industrial Ethernet applications.
Designed for harsh environments, the switch features redundant dual 9–56VDC power inputs, providing flexible and reliable power supply for critical network installations. Its fanless design, low power consumption, rugged IP40 metal housing, DIN-Rail/wall mounting options and -40°C to +80°C operating temperature make it suitable for industrial networking, intelligent transportation systems, utilities and other demanding applications.
- 2×10/100/1000Base-T RJ45 ports with IEEE 802.3at PoE+ support
- 2×1000Base-X SFP slots with automatic SFP type detection
- Gigabit Ethernet transmission up to 1000Mbps
- Auto-Negotiation and Auto MDI/MDIX
- Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
- Supports IEEE 802.3x Flow Control
- Supports IEEE 802.3/802.3u/802.3ab/802.3z/802.3x Store-and-Forward switching
- Supports IEEE 802.3D/W/S STP/RSTP/MSTP protocols
- Large backplane bandwidth and switching buffer for wire-speed forwarding
- IEEE 802.3at PoE+ functionality
- 9–56VDC wide-range power input
- Supports redundant dual power input
- Fanless, low-power industrial design
- Rugged IP40 metal housing

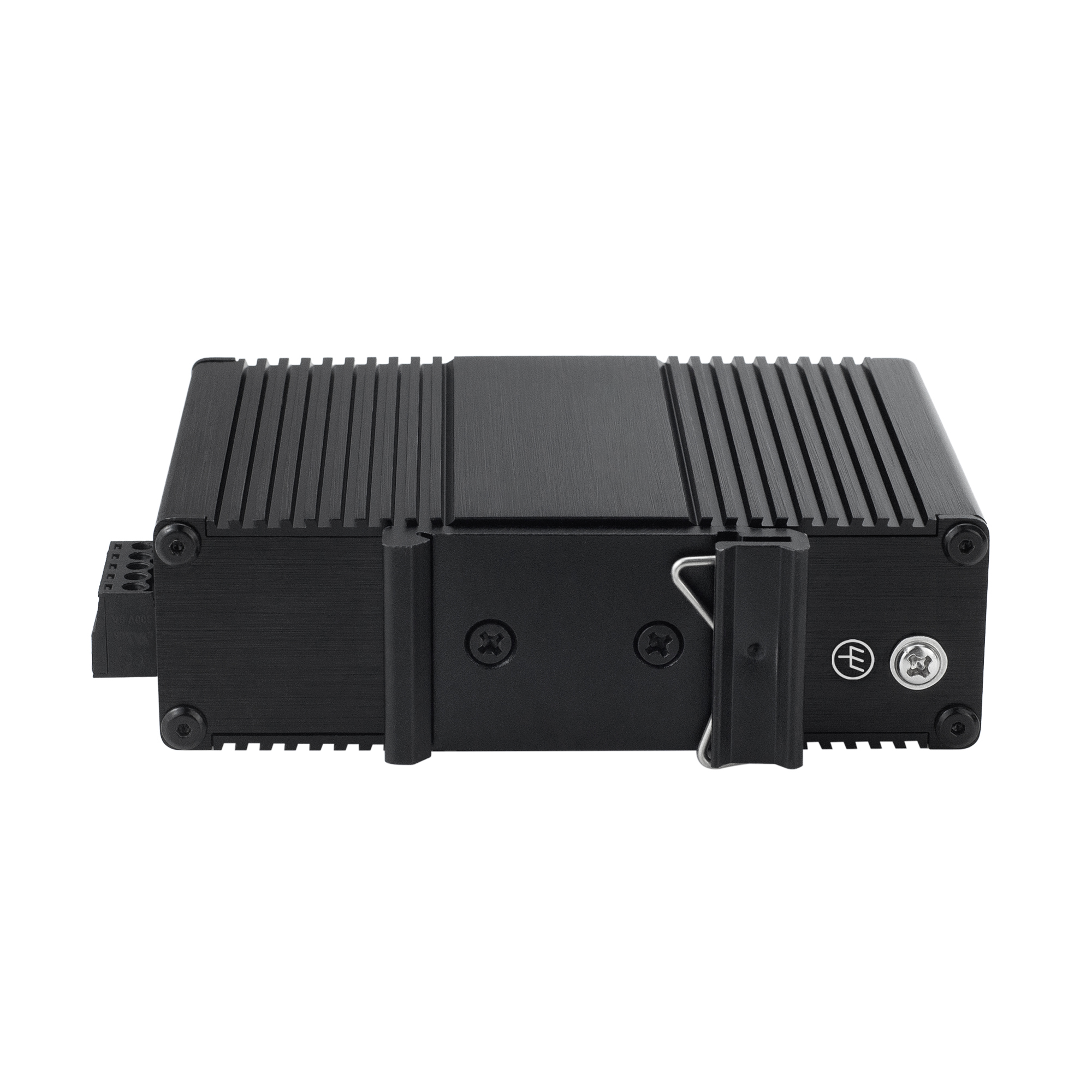

- Supports DIN-Rail and wall-mount installation
- -40°C to +80°C (-40°F to +176°F) operating temperature
