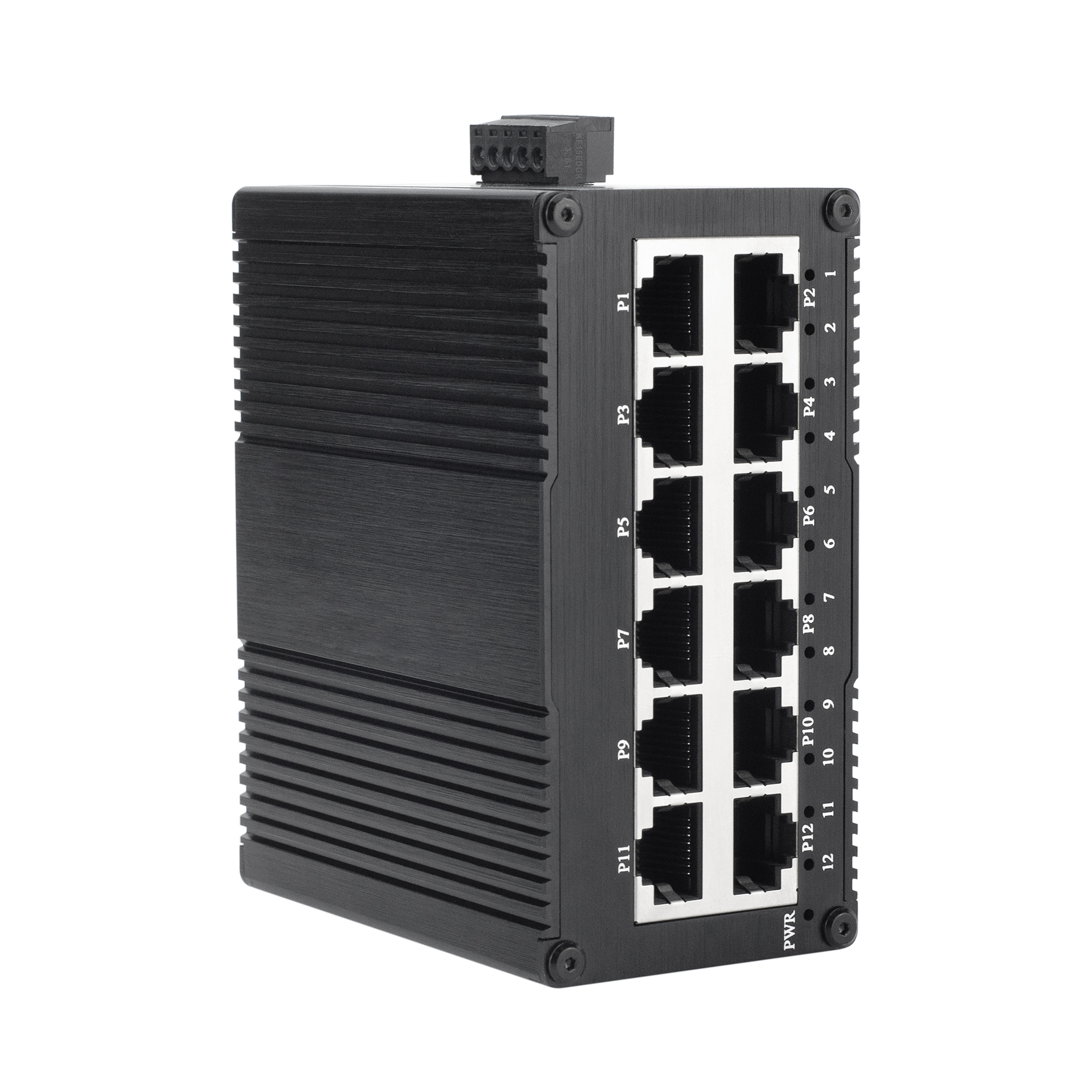

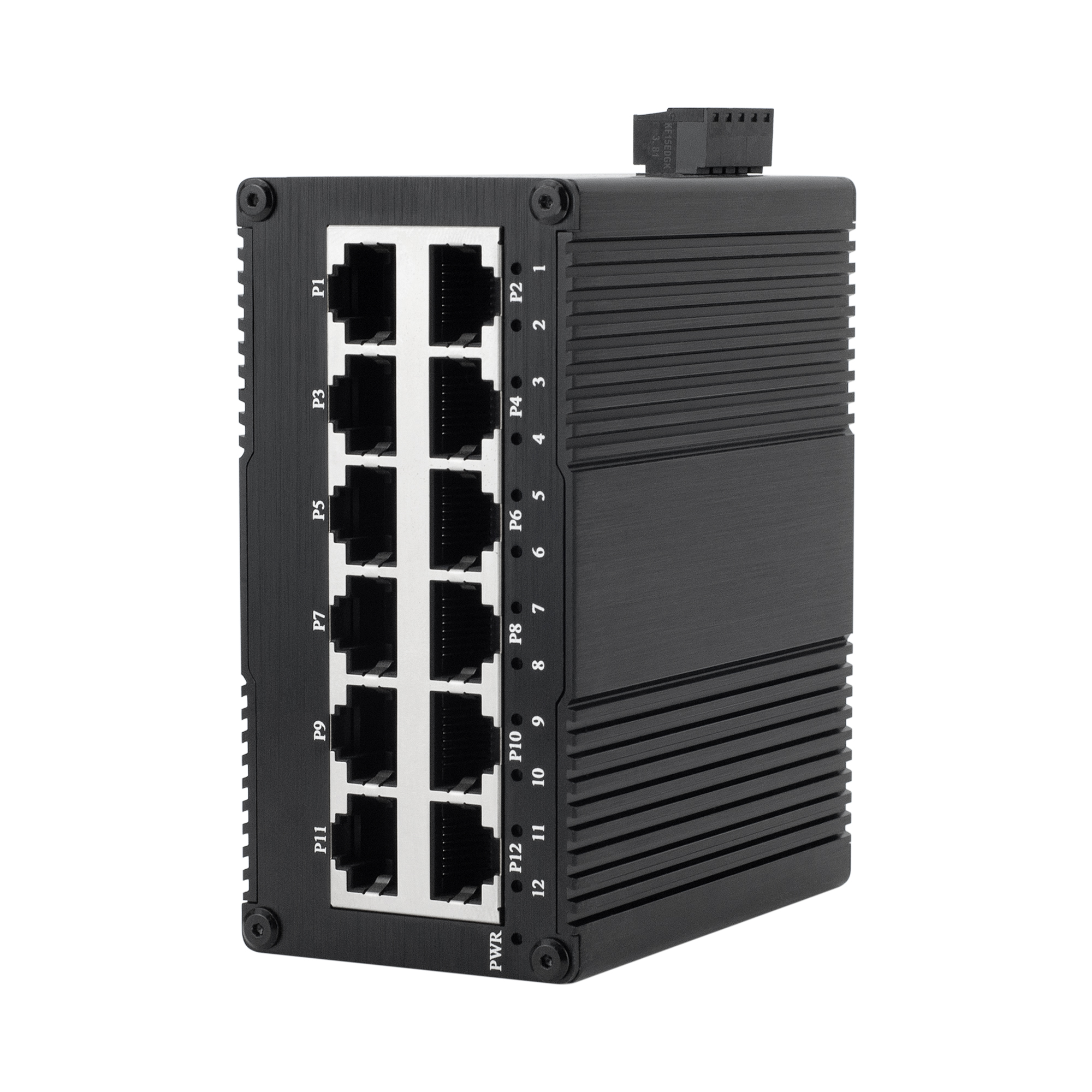

The EKN1200GEP Series is a compact unmanaged industrial Gigabit Ethernet switch featuring 12 × 10/100/1000Base-T RJ45 ports in total, with Ports 1–4 supporting IEEE 802.3af/at/bt PoE. Ports 5–12 provide standard Gigabit Ethernet connectivity for non-PoE network devices. With a wide 44–56VDC power input and optional PoE power configurations of up to 30W, 60W, or 90W per PoE port, the switch provides flexible and reliable network connectivity for industrial applications.
Designed for demanding industrial environments, the switch supports Auto MDI/MDI-X, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet, and Store-and-Forward switching for stable and efficient data transmission. It also supports STP, RSTP, and MSTP protocols for improved network redundancy and reliability. With an IP40 aluminum housing, DIN-Rail and wall-mount installation, and a wide operating temperature range of -40°C to +75°C, the EKN1200GEP Series is suitable for industrial automation, surveillance, transportation, power, renewable energy, and other harsh-environment applications.

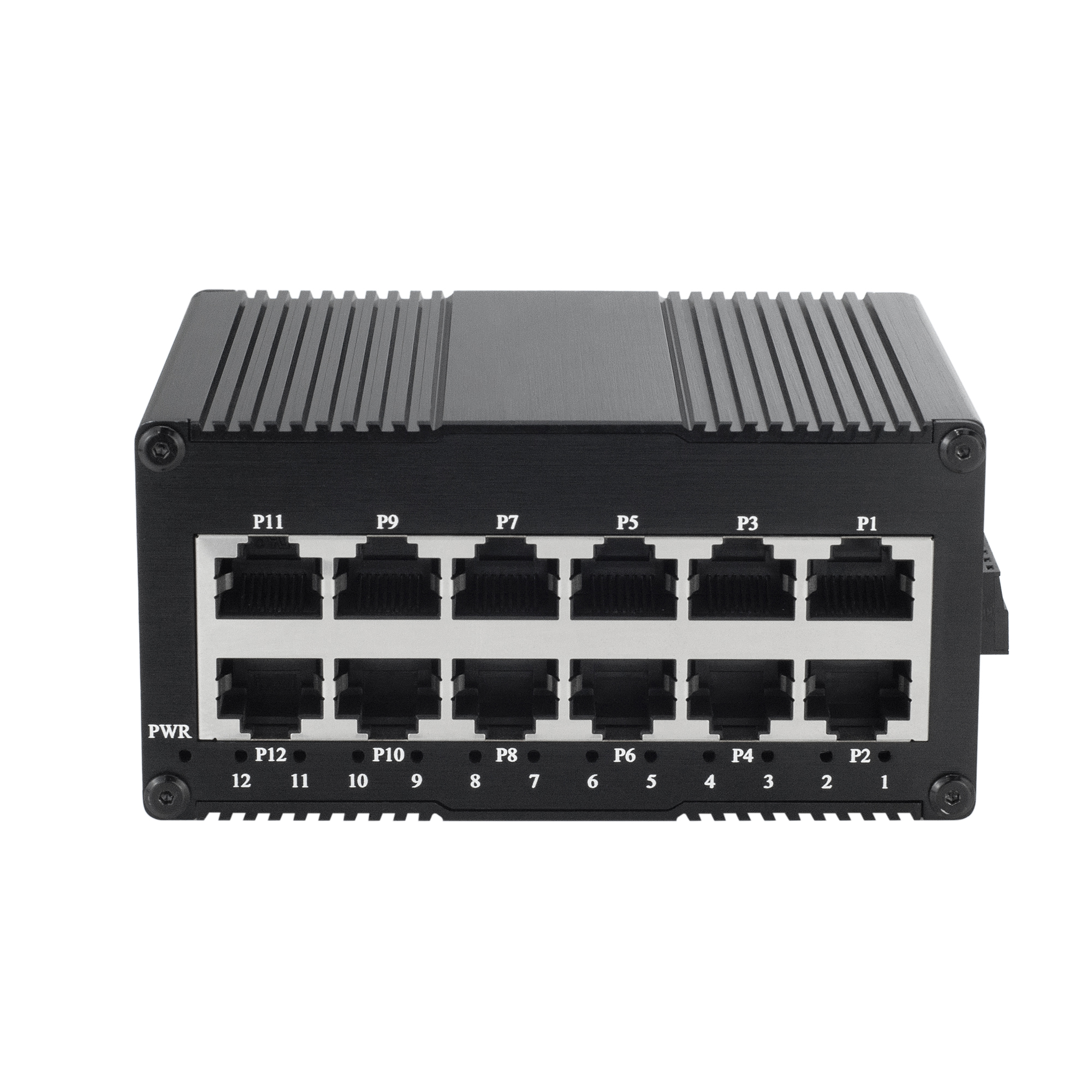

- 12 × 10/100/1000Base-T Gigabit Ethernet RJ45 ports in total
- Ports 1–4 support IEEE 802.3af/at/bt PoE
- Ports 5–12 provide standard Gigabit Ethernet connectivity
- Optional PoE power: up to 30W, 60W, or 90W per PoE port
- 44–56VDC wide-range power input
- Auto MDI/MDI-X
- Supports IEEE 802.3x Flow Control
- Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
- Supports IEEE 802.3/802.3u/802.3ab/802.3z/802.3x
- Store-and-Forward switching
- Supports IEEE 802.3D/W/S STP/RSTP/MSTP protocols

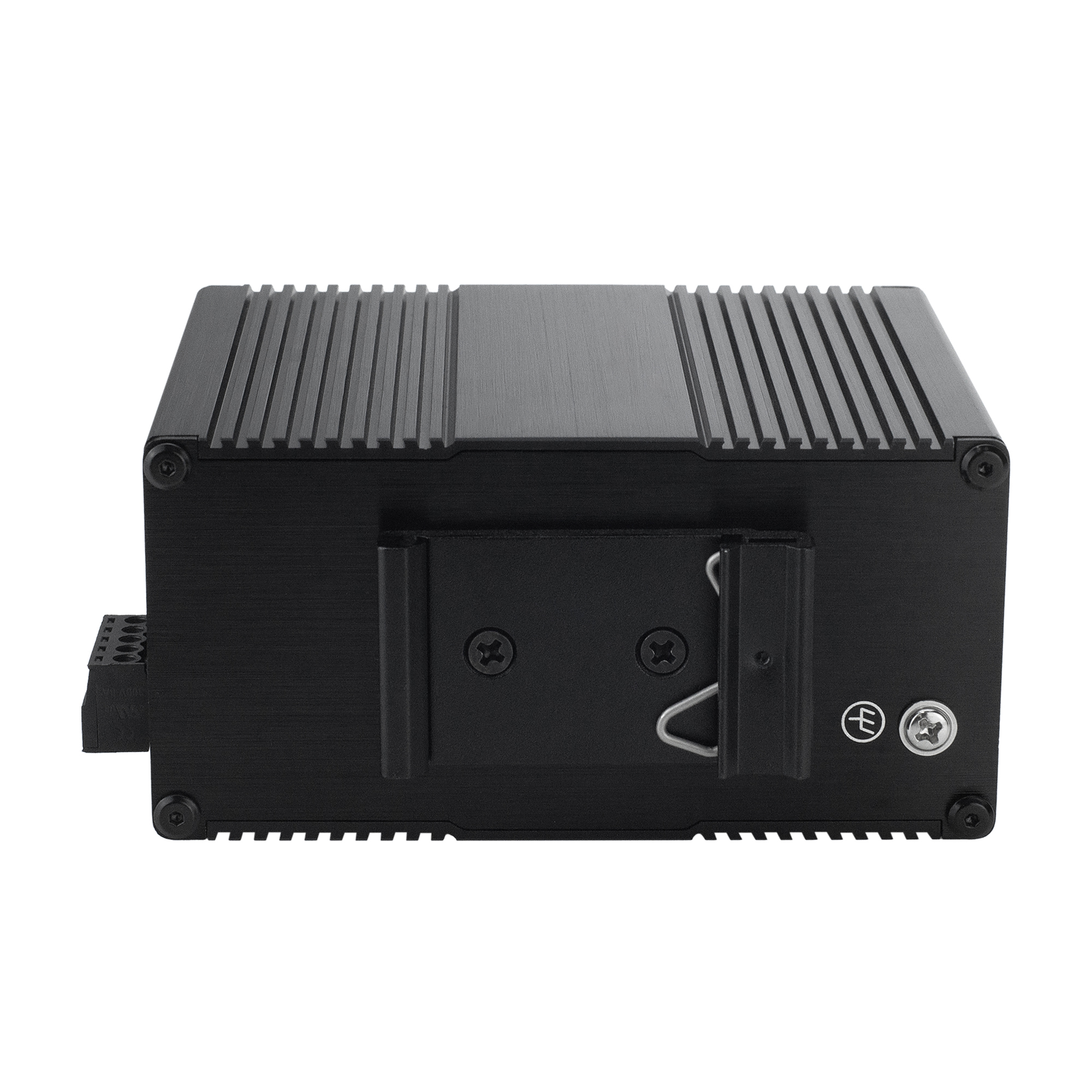

- Supports DIN-Rail and wall-mount installation
- Industry-standard IP40 aluminum housing
- Wide operating temperature range: -40°C to +75°C (-40°F to +176°F)
- Unmanaged plug-and-play operation
- Designed for industrial Ethernet, PoE surveillance, automation, transportation, power, renewable energy, and other demanding applications
- CE and FCC compliant
