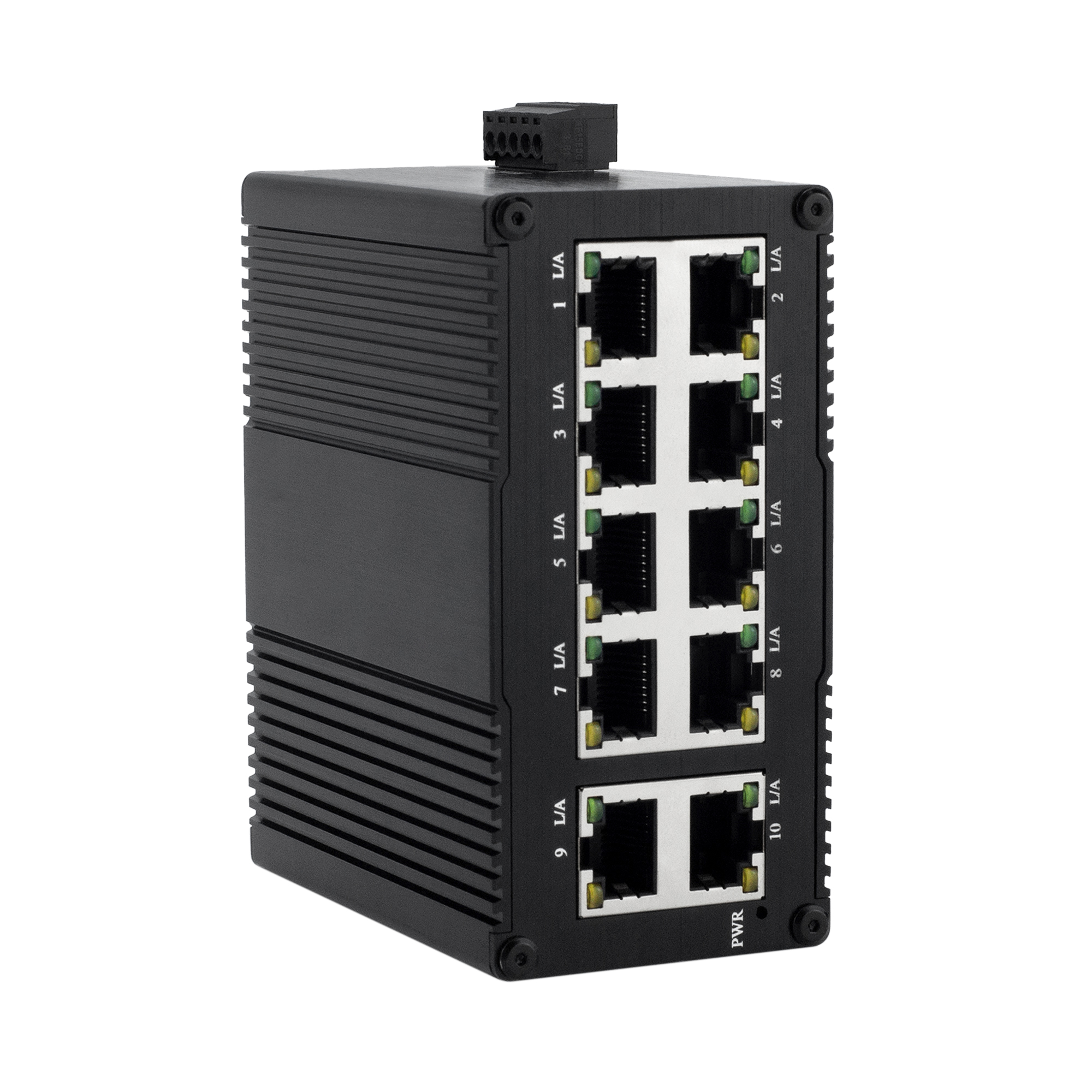

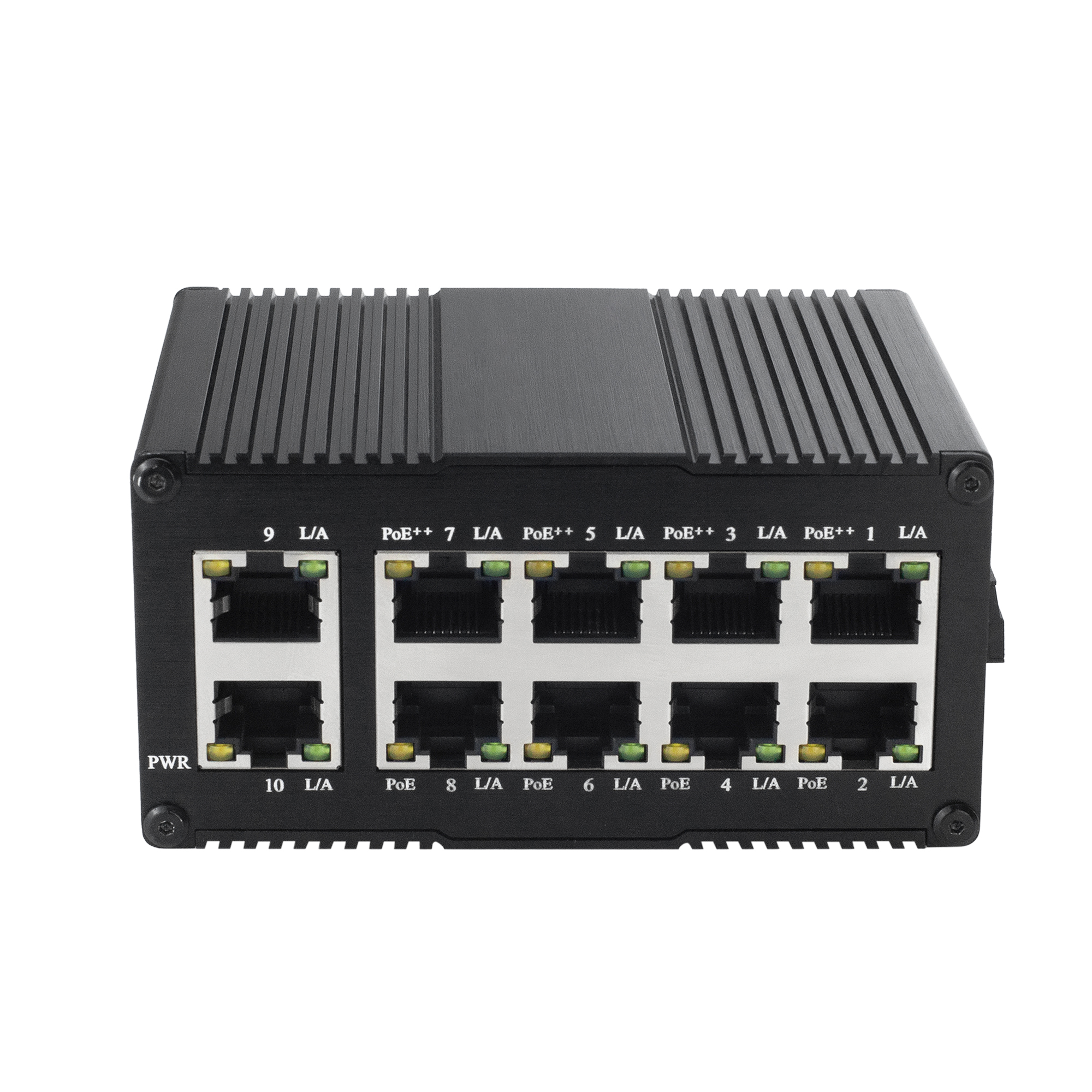

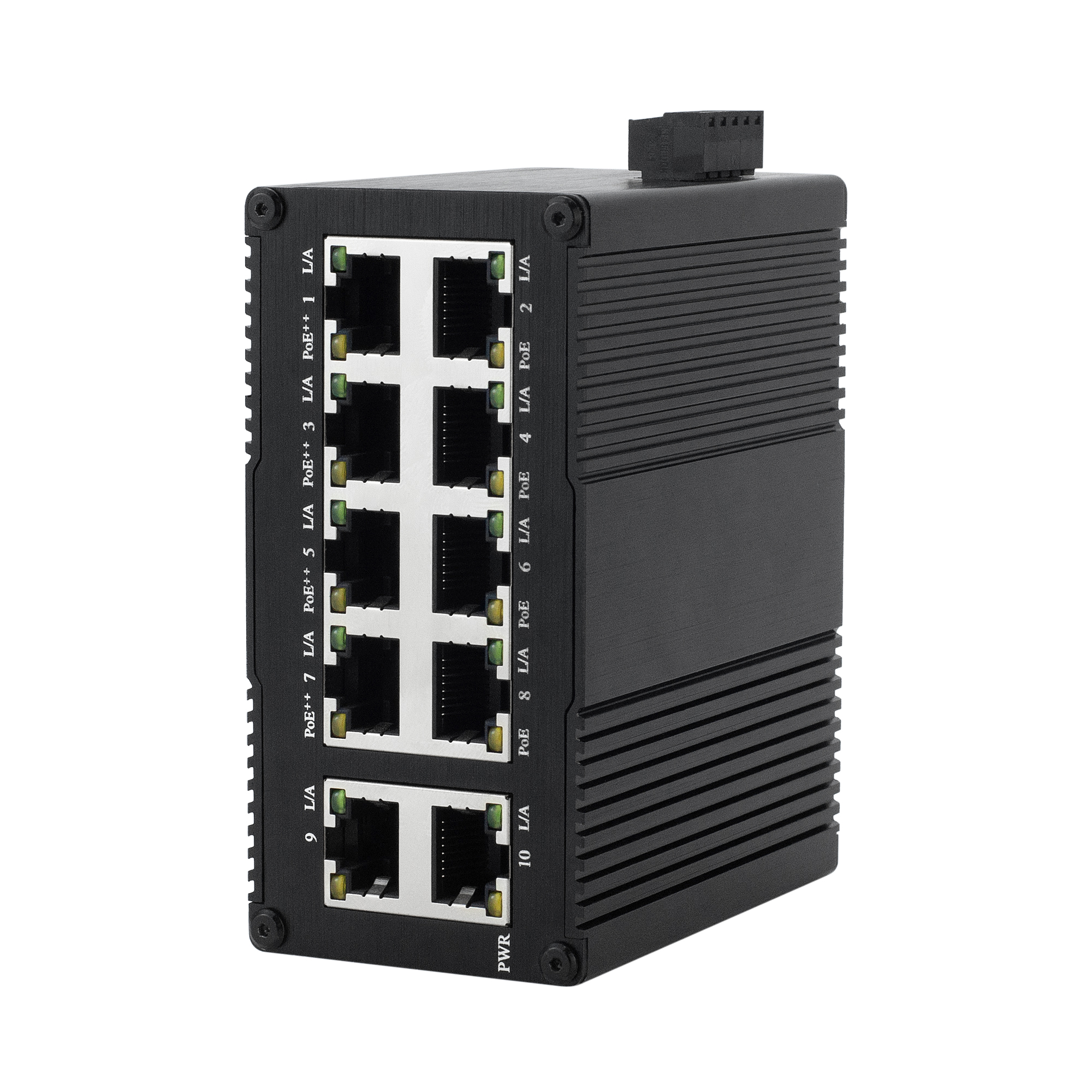

The EKN1000GEP Series is a compact unmanaged industrial Gigabit Ethernet switch featuring ten 10/100/1000Base-T RJ45 ports, with PoE++ functionality available on Ports 1–4. Supporting IEEE 802.3af/at/bt PoE technology and a wide 44–56VDC power input, the switch provides flexible and reliable Ethernet connectivity for industrial applications. Depending on the selected PoE configuration, each PoE port can deliver up to 30W, 60W, or 90W of power.
Designed for demanding industrial environments, the switch supports Auto MDI/MDI-X, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet, and Store-and-Forward switching for stable and efficient data transmission. It also supports STP, RSTP, and MSTP protocols for improved network redundancy and reliability. With an IP40 aluminum housing, DIN-Rail and wall-mount installation, and a wide operating temperature range of -40°C to +75°C, the EKN1000EGP Series is suitable for industrial automation, surveillance, transportation, power, renewable energy, and other harsh-environment applications.
- 10 × 10/100/1000Base-T Gigabit Ethernet RJ45 ports
- Port 1–4 supporting IEEE 802.3af/at/bt
- Optional PoE power: up to 30W, 60W, or 90W per PoE port
- 44–56VDC wide-range power input
- Auto MDI/MDI-X
- Supports IEEE 802.3x Flow Control
- Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
- Supports IEEE 802.3/802.3u/802.3ab/802.3z/802.3x
- Store-and-Forward switching
- Supports IEEE 802.3D/W/S STP/RSTP/MSTP protocols

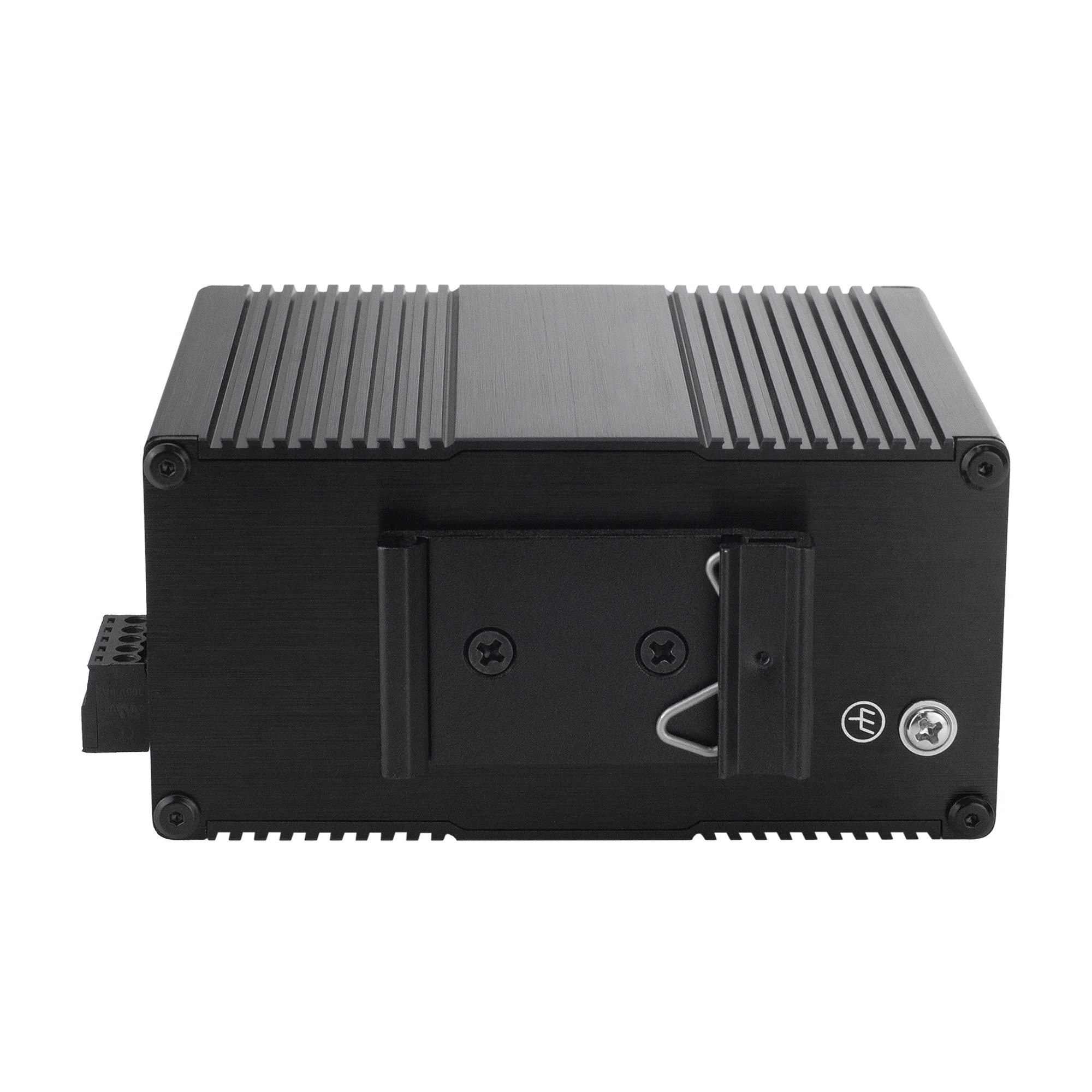

- Supports DIN-Rail and wall-mount installation
- Industry-standard IP40 aluminum housing
- Wide operating temperature range: -40°C to +75°C (-40°F to +176°F)
- Unmanaged plug-and-play operation
- Designed for industrial Ethernet, PoE surveillance, automation, transportation, power, renewable energy, and other demanding applications
- CE and FCC compliant
