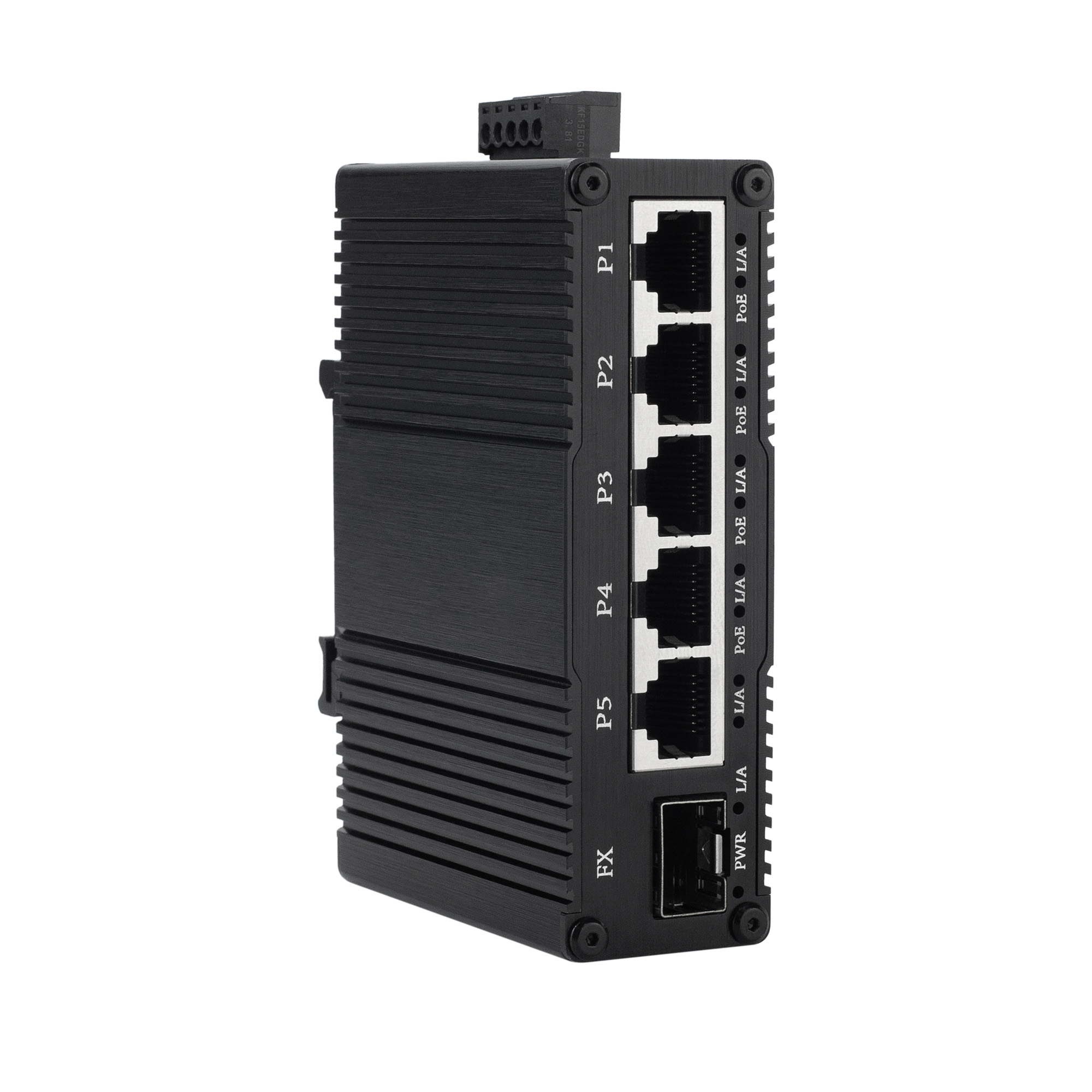

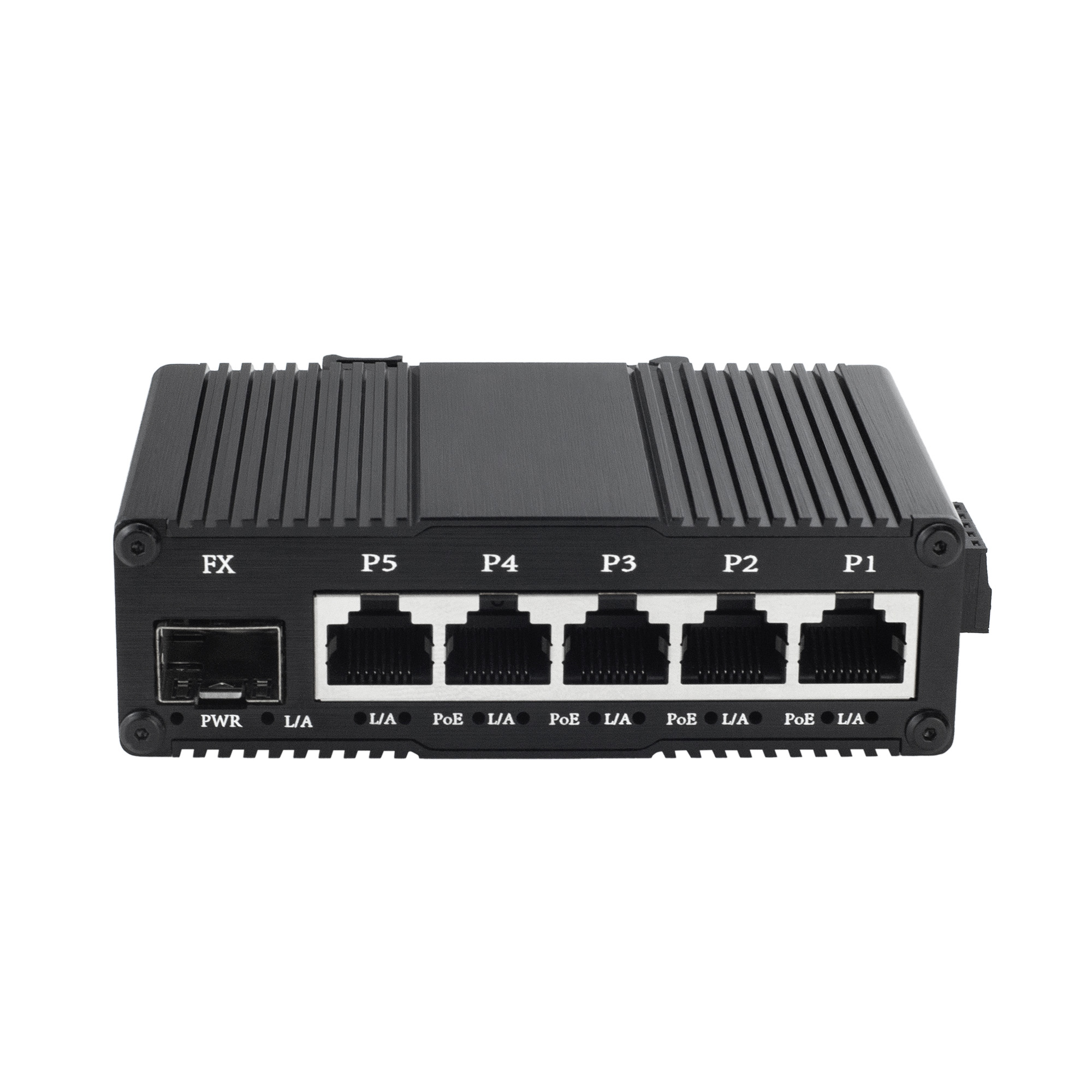

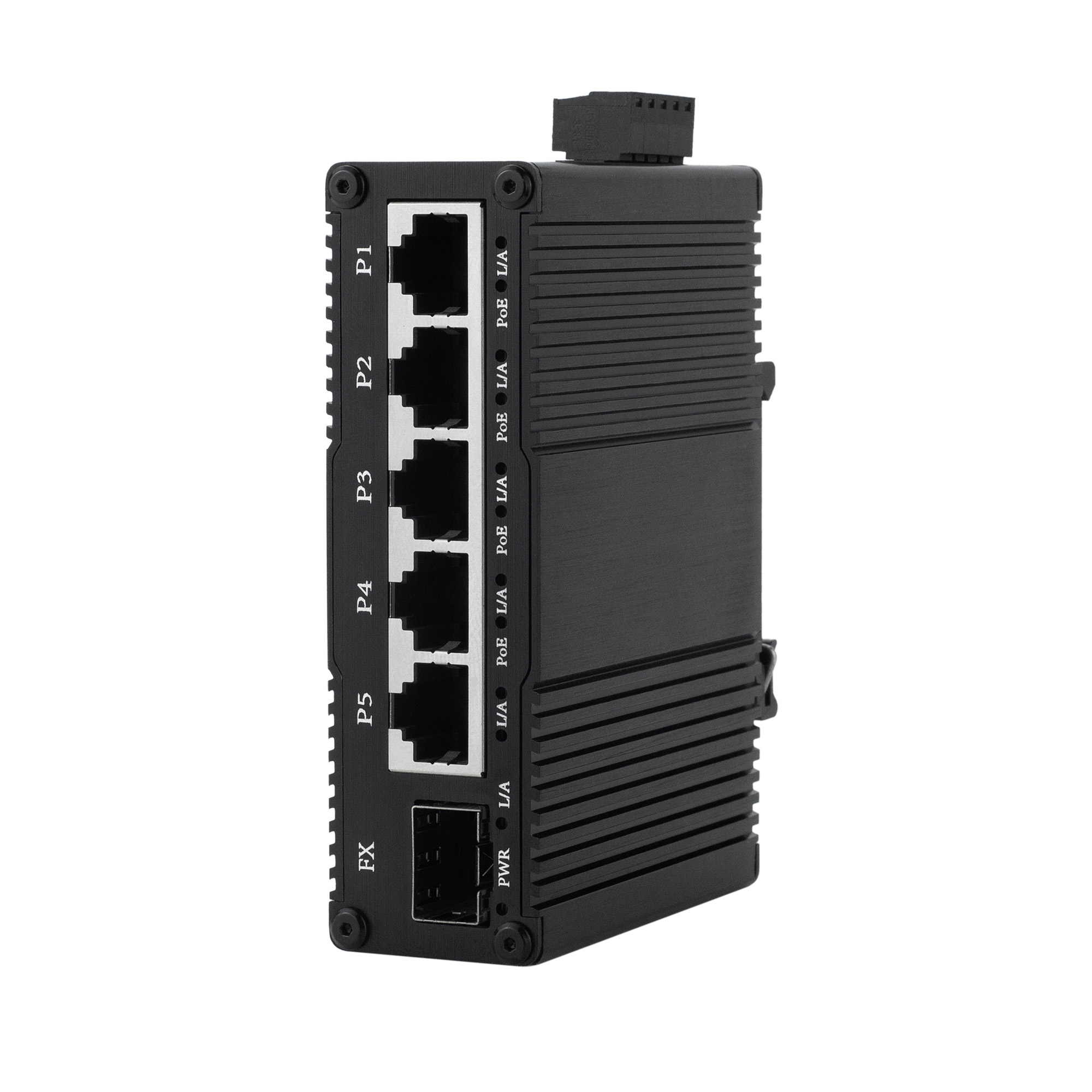

The Mini Industrial Gigabit Ethernet Switch is a compact and reliable industrial Ethernet solution designed for demanding industrial control and network communication applications. It provides five 10/100/1000Base-T Gigabit Ethernet RJ45 ports and one 1000Base-X SFP port for flexible copper and fiber connectivity. The switch features redundant dual power inputs with a wide voltage range, supporting 9–56VDC for standard models, 11–56VDC for 30W PoE models, and 44–56VDC for 60W/90W PoE models, providing greater flexibility for different industrial power systems.
Designed with a fanless aluminum housing, IP40 protection, low power consumption, and high reliability, the switch is suitable for harsh industrial environments. It supports Full/Half-Duplex operation, Auto-Negotiation, Auto MDI/MDIX, IEEE 802.3az Energy Efficient Ethernet, Jumbo Frames, and Store-and-Forward switching. The compact design supports both DIN-Rail and wall-mount installation, making it suitable for power, water infrastructure, rail transportation, traffic monitoring, renewable energy, building automation, and other industrial applications.
- 5 × 10/100/1000Base-T Gigabit Ethernet RJ45 ports
- 1 × 1000Base-X SFP port for fiber optic connectivity
- Supports 10/100/1000Mbps Full/Half-Duplex operation
- Auto-Negotiation and Auto MDI/MDIX
- Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
- Supports IEEE 802.3/802.3u/802.3ab/802.3z/802.3x and Store-and-Forward switching
- Supports redundant dual power input with a wide voltage range
- Standard models: 9–56VDC
- PoE 30W models: 11–56VDC
- PoE 60W/90W models: 44–56VDC
- Supports 9K-byte Jumbo Frames
- Compact, fanless aluminum housing with IP40 protection

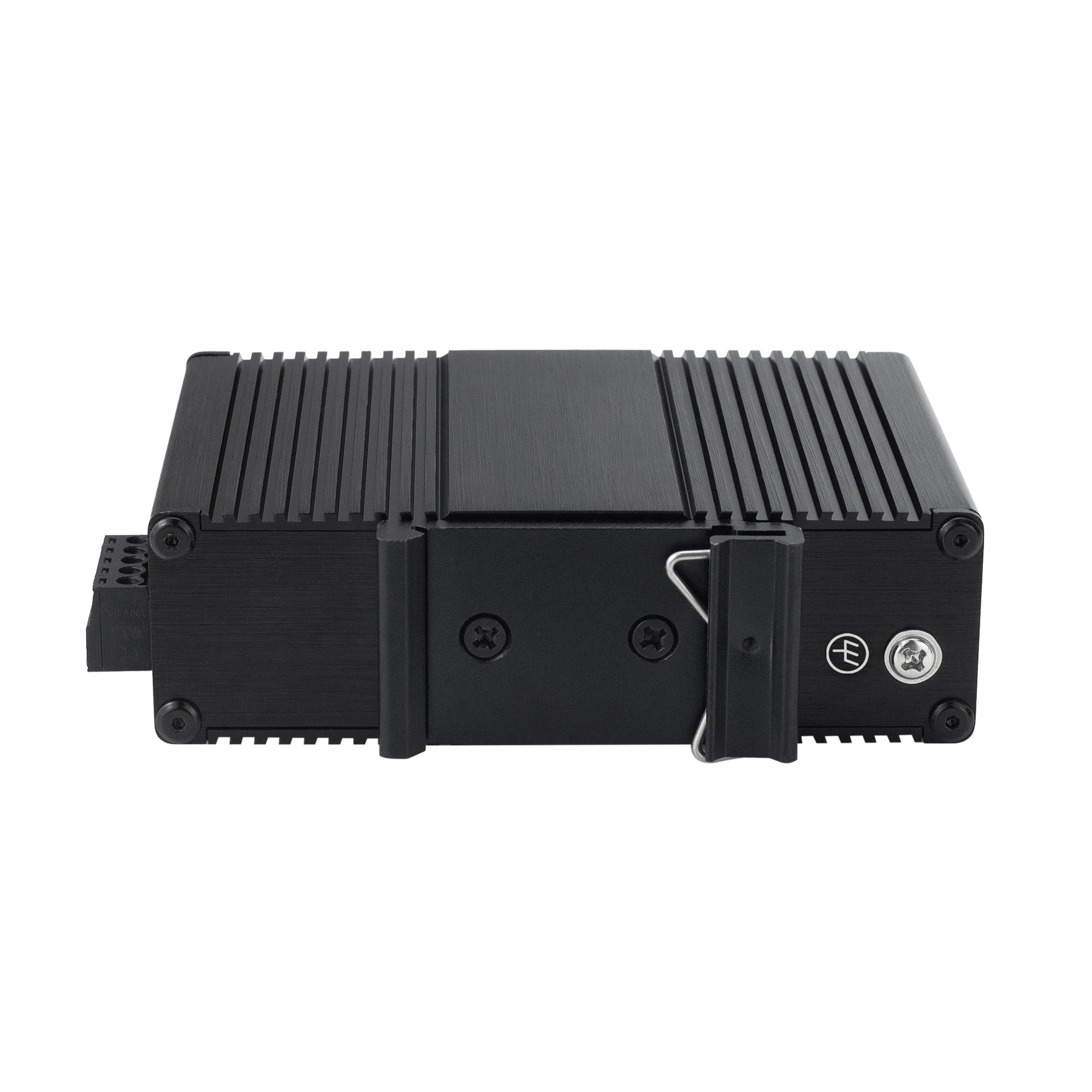

- DIN-Rail and wall-mount installation
- Wide operating temperature range: -40°C to +80°C (-40°F to +176°F)
- Designed for industrial Ethernet, fiber networking, transportation, power, renewable energy, and automation applications
