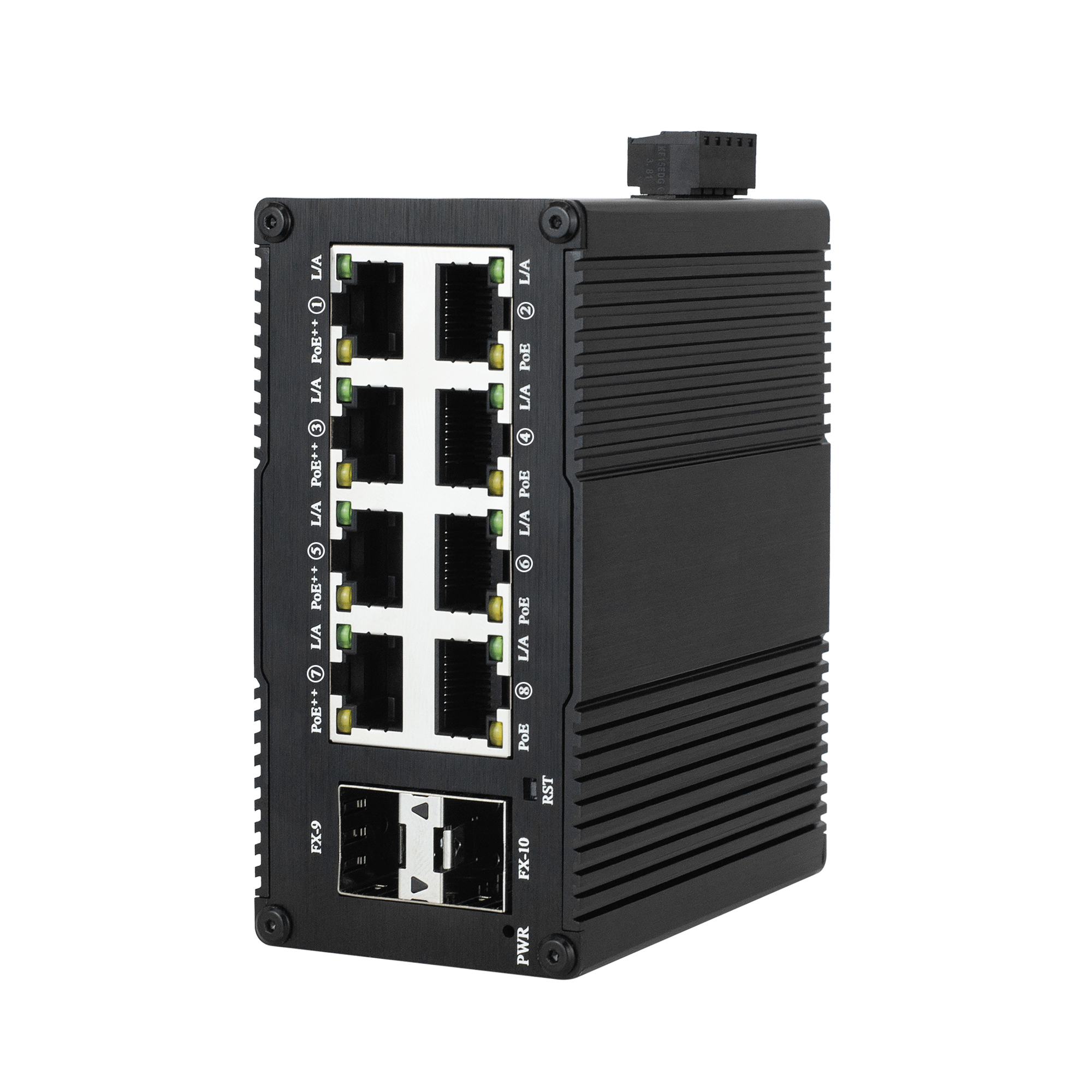

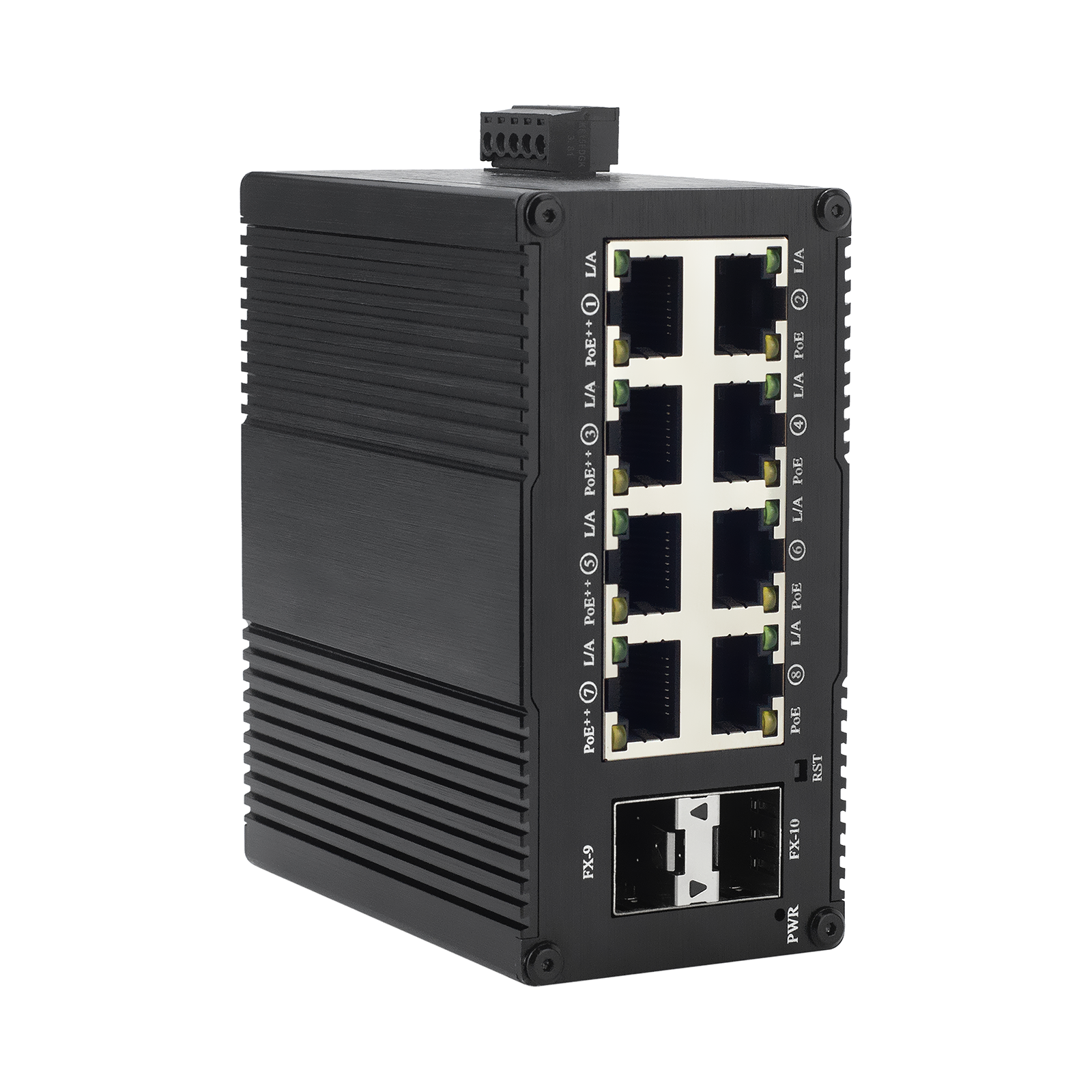

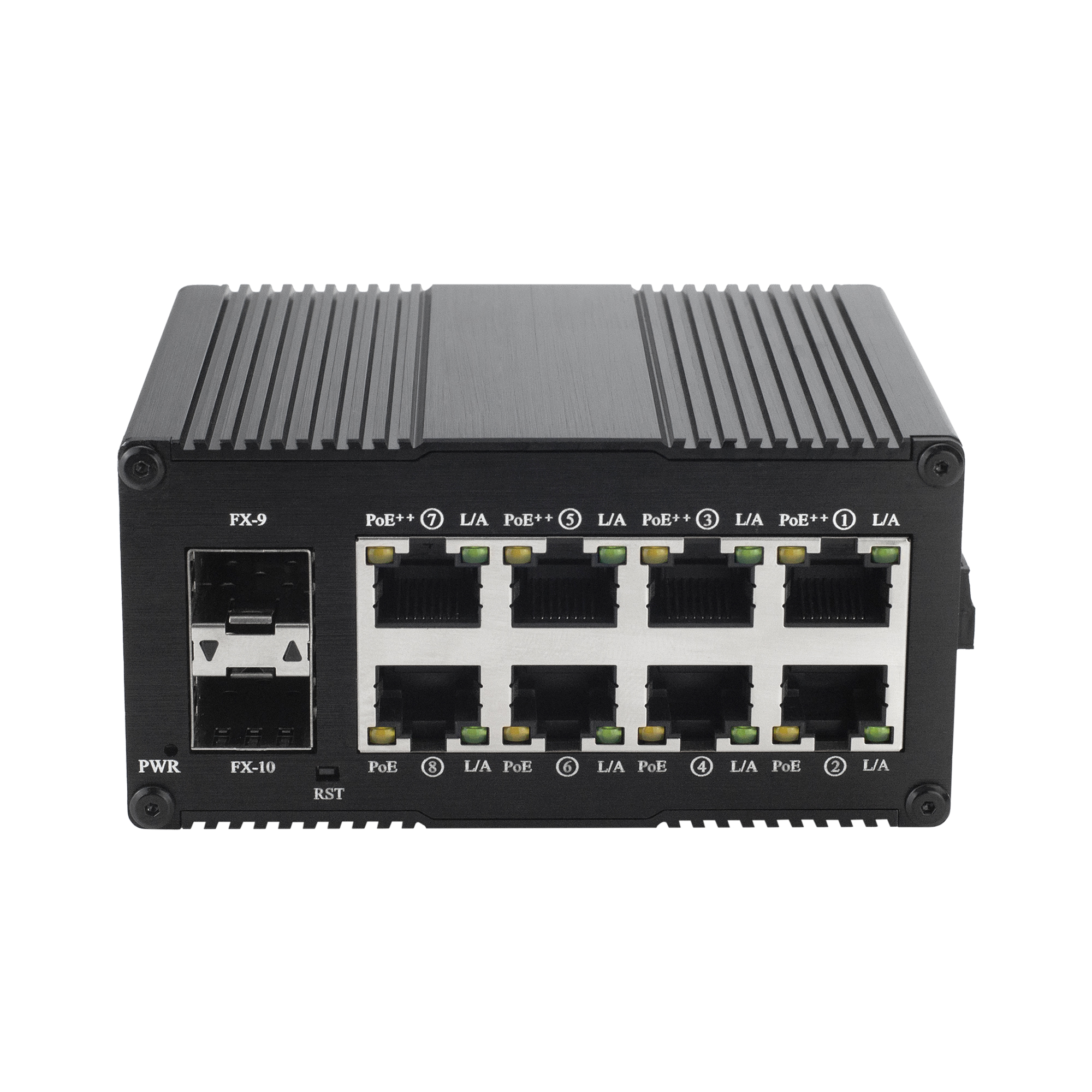

The Mini Industrial 10-Port Gigabit PoE Fiber Switch is a compact and rugged industrial Ethernet switch designed for reliable network connectivity, PoE power delivery and long-distance fiber communication. It provides eight 10/100/1000Base-T RJ45 ports and two 1000Base-X SFP slots, offering flexible copper and fiber connectivity for industrial Ethernet networks.
Ports 1–4 support IEEE 802.3at PoE+ for powering compatible network devices such as IP cameras, wireless access points and other PoE-enabled equipment, while the remaining Gigabit RJ45 ports provide high-speed data connectivity. The two 1000Base-X SFP slots support automatic SFP detection, allowing the switch to be integrated into fiber optic backbones and long-distance network links.
The switch supports Auto-Negotiation, Auto MDI/MDIX, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3x Flow Control and Store-and-Forward switching. It also supports STP/RSTP/MSTP network redundancy protocols based on IEEE 802.3D/W/S, helping improve network reliability and support redundant network architectures.
With redundant dual 9–56VDC power inputs, the switch provides flexible and reliable power for critical industrial deployments. Its fanless design, low power consumption, rugged IP40 metal housing, DIN-Rail/wall-mount installation and -40°C to +80°C operating temperature make it suitable for harsh industrial and infrastructure environments.
- 8×10/100/1000Base-T RJ45 ports
- Ports 1–4 support IEEE 802.3at PoE+ power delivery
- 2×1000Base-X SFP slots with automatic SFP detection
- Gigabit Ethernet transmission up to 1000Mbps
- Auto-Negotiation and Auto MDI/MDIX
- Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
- Supports IEEE 802.3x Flow Control
- Supports Store-and-Forward switching mode
- Supports IEEE 802.3D/W/S STP/RSTP/MSTP network redundancy protocols
- Supports large backplane bandwidth and exchange cache for line-rate forwarding
- PoE configuration available as specified
- 9–56VDC wide-range power input
- Supports redundant dual power inputs
- Rugged IP40 high-strength metal housing
- Fanless design with low power consumption

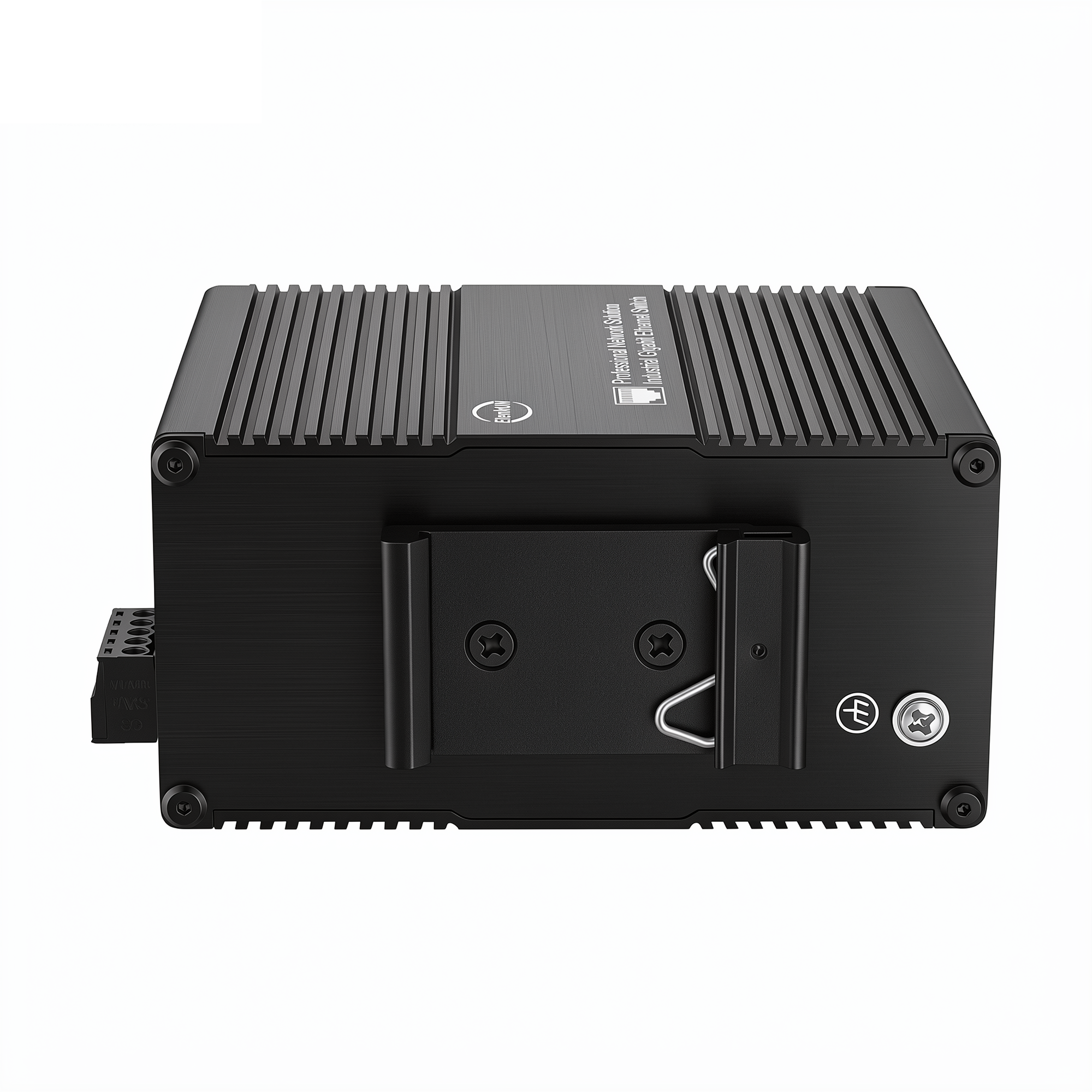

- Supports DIN-Rail and wall-mount installation
- -40°C to +80°C (-40°F to +176°F) operating temperature
- Suitable for industrial networking, intelligent transportation systems, utility networks and other harsh-environment applications
