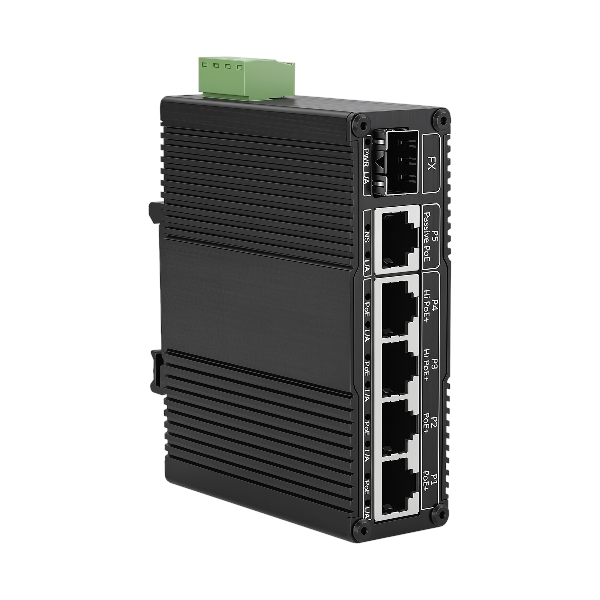

Mini Industrial Solar PoE Switch, 5-Port Gigabit PoE + 1-Port SFP, 9–48VDC Input with Power Booster
The Mini Industrial Solar PoE Switch is designed for DC-powered network applications and combines Gigabit Ethernet connectivity with multiple PoE power options in a compact industrial enclosure. It features two IEEE 802.3at PoE ports with up to 30W per port, two Hi-PoE ports with up to 50W per port, one passive 24V PoE port, and one 100/1000Base-X SFP slot for fiber connectivity. With a wide 9–48VDC power input and integrated Power Booster, the switch provides flexible power management for DC-powered network systems. It supports reliable Gigabit data transmission with Full/Half-Duplex operation, auto-negotiation, Auto MDI/MDIX, IEEE 802.3az Energy Efficient Ethernet, Store-and-Forward switching, and 16K-byte Jumbo Frames. The rugged IP40 aluminum housing, fanless industrial design, and -40°C to +75°C operating temperature make it suitable for solar-powered surveillance, traffic monitoring, remote industrial sites, renewable energy systems, and other demanding field deployments.
- 2 × 10/100/1000Base-T RJ45 ports with IEEE 802.3at PoE, up to 30W per port
- 2 × 10/100/1000Base-T RJ45 ports with Hi-PoE, up to 50W per port
- 1 × 10/100/1000Base-T RJ45 port with passive 24V PoE
- 1 × 100/1000Base-X SFP slot for fiber connectivity
- 9–48VDC wide-range power input with integrated Power Booster
- Supports Full/Half-Duplex, Auto-Negotiation, and Auto MDI/MDIX
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Store-and-Forward switching
- Supports 16K-byte Jumbo Frames
- Compact, fanless, rugged aluminum housing with IP40 protection
- DIN-Rail and wall-mount installation
- -40°C to +75°C operating temperature
- Suitable for solar-powered surveillance, traffic monitoring, power, renewable energy, and industrial automation applications
