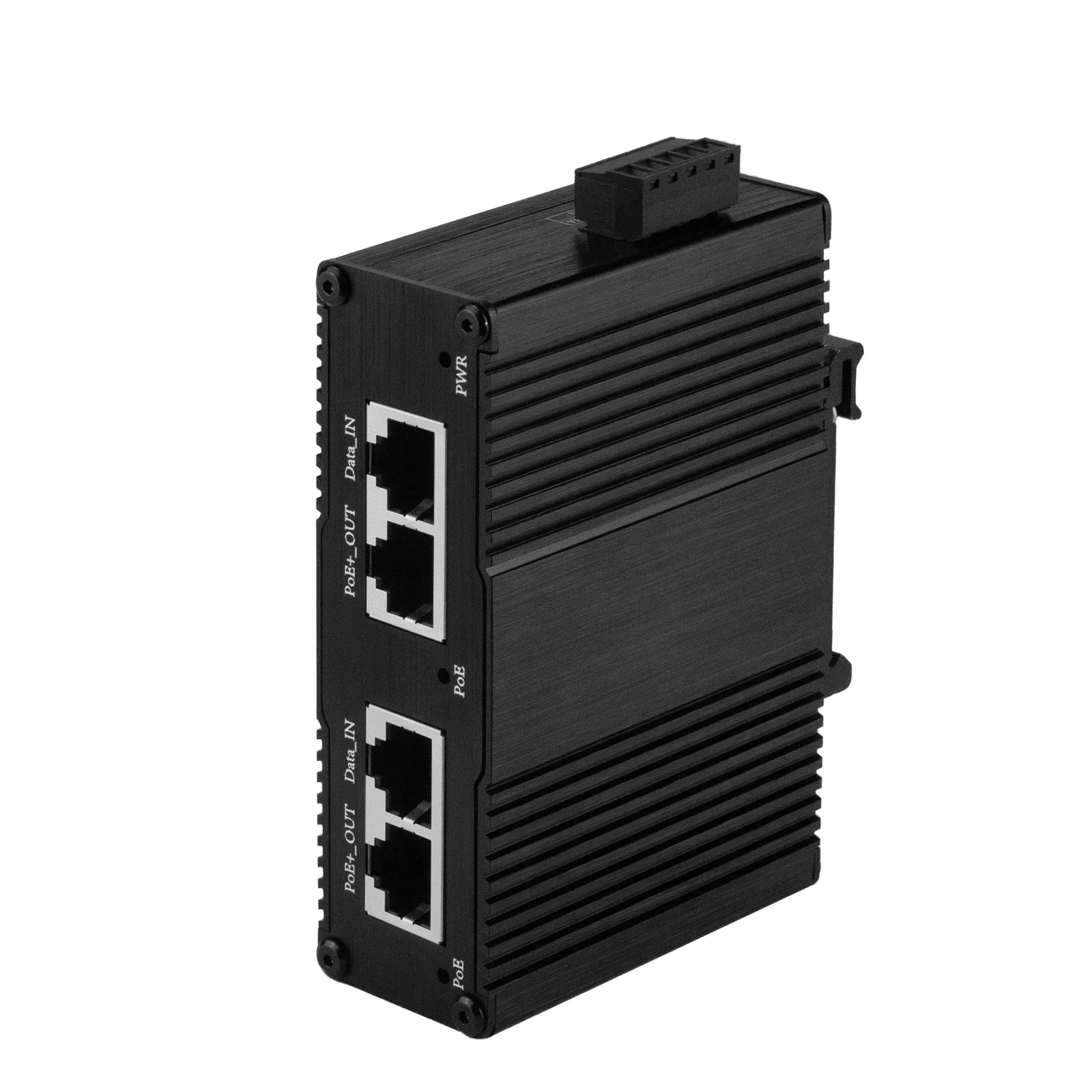

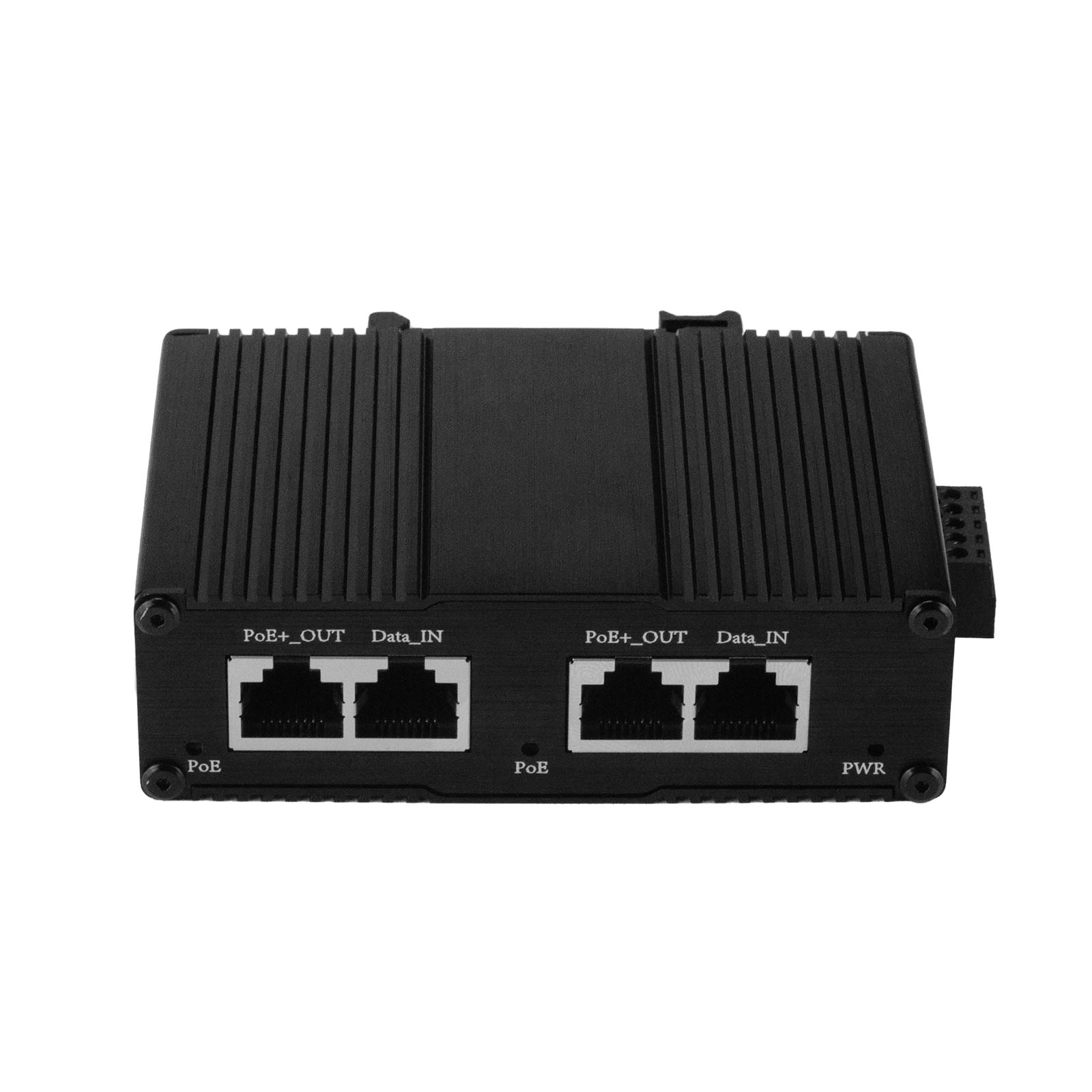

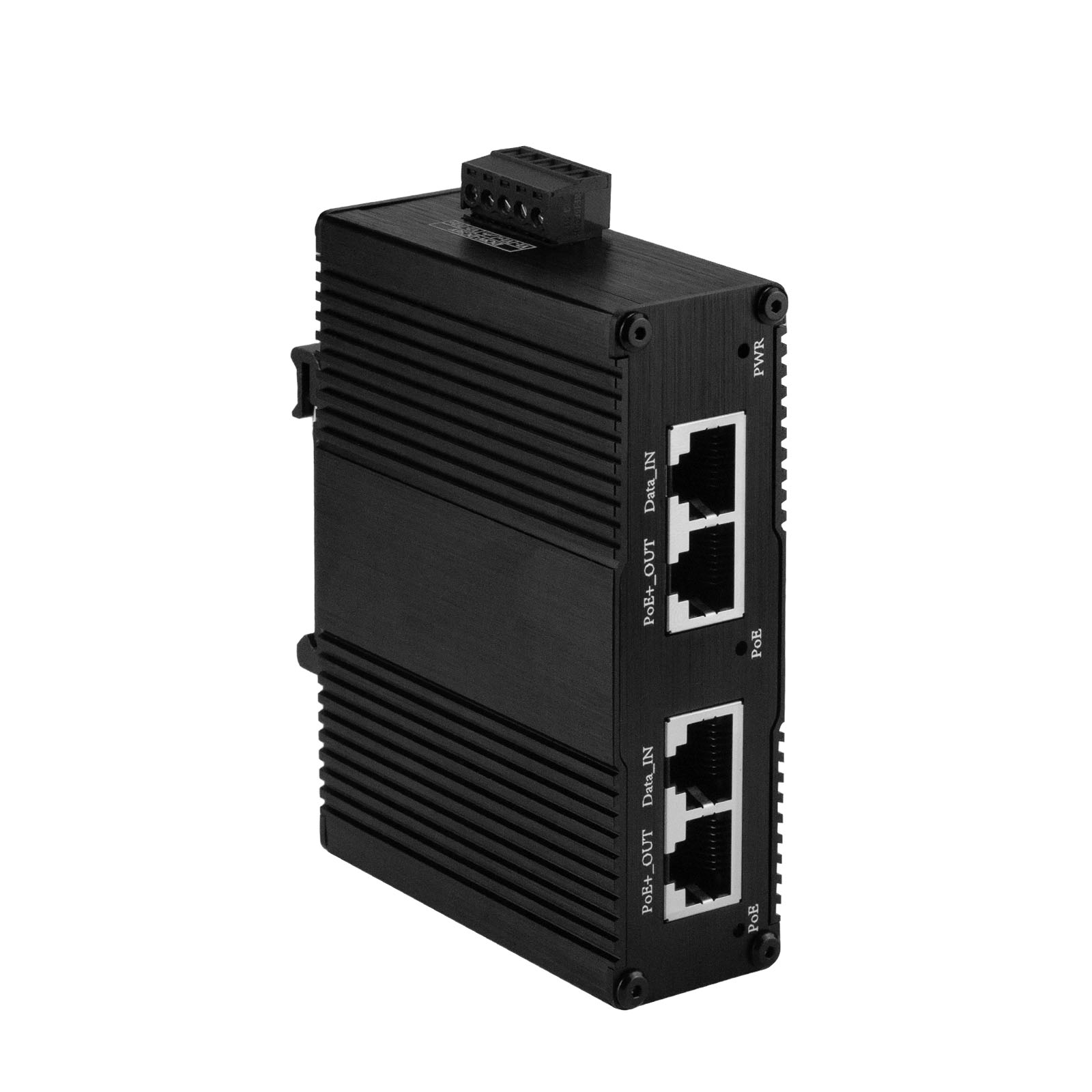

The EKPS02A is a hardened high-power PoE injector designed to connect IEEE 802.3af/at PoE devices, such as IP cameras and wireless access points, to a non-PoE Gigabit Ethernet switch. It features two RJ45 Ethernet data input ports and two RJ45 PoE output ports, supporting 10/100/1000Base-T transmission while delivering both data and power to connected PoE devices.
Equipped with a built-in high-power booster circuit, the EKPS02A supports a wide input voltage range of DC 10–56V or AC 12–36V, providing a flexible power solution for industrial and high-availability applications. Each PoE output port can deliver up to 30W, with a total PoE power budget of less than 60W. The PoE output ports comply with IEEE 802.3af/at PoE standards and can support a transmission distance of up to 100m.
The ruggedized design supports DIN-Rail and wall-mount installation, while extensive LED indicators provide convenient PoE and power diagnostics. With a wide operating temperature range of -40°C to +80°C, the EKPS02A is designed for reliable operation in demanding industrial and outdoor environments.
- 2 × RJ45 Gigabit Ethernet data input ports
- 2 × RJ45 PoE output ports for data and power
- Supports 10/100/1000Base-TX
- Supports IEEE 802.3af/at PoE Power Sourcing Equipment (PSE)
- Up to 30W PoE power per output port
- Total PoE power: less than 60W
- DC 10–56V or AC 12–36V power input
- Built-in high-power booster circuit
- Supports up to 100m Ethernet transmission distance

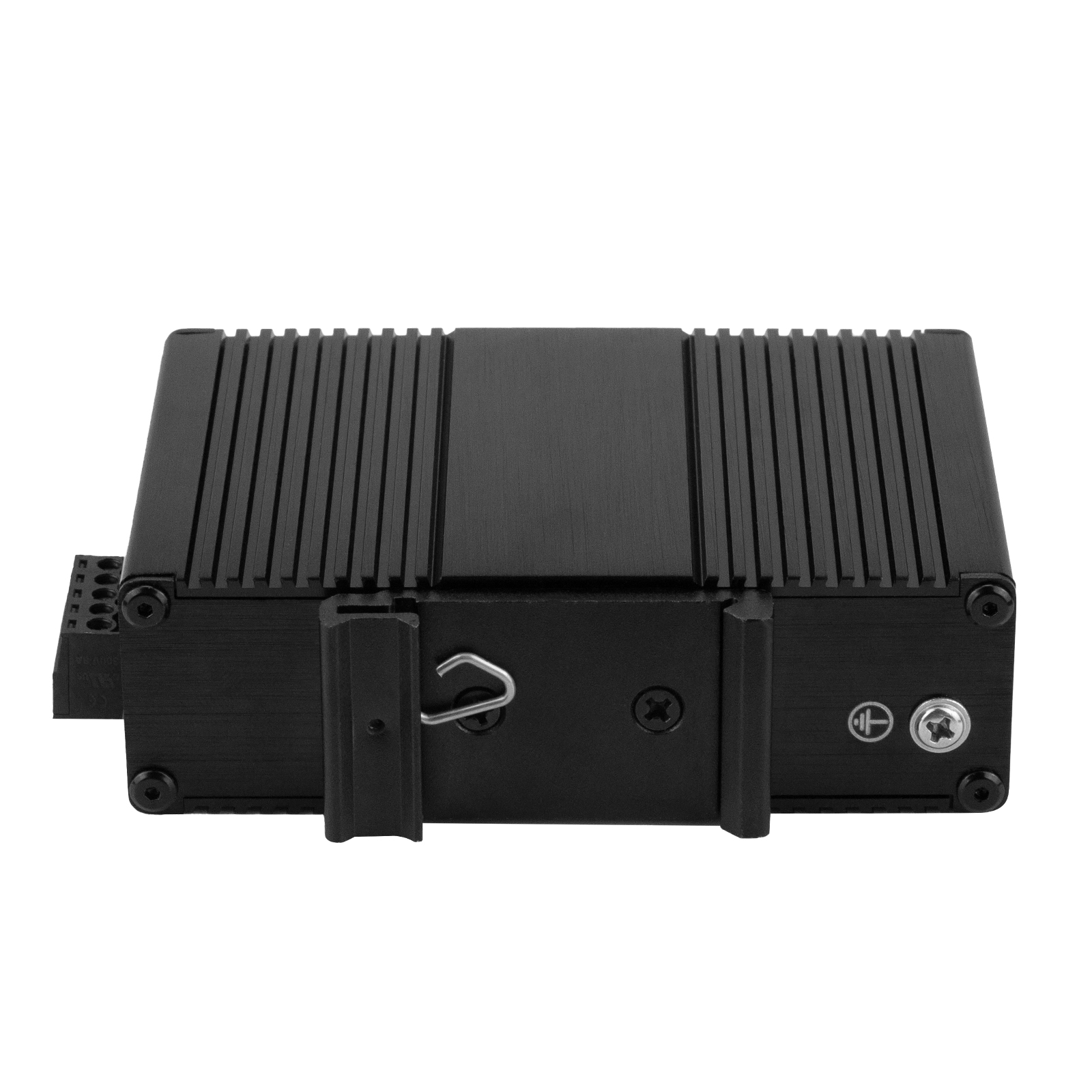

- DIN-Rail and wall-mount installation
- Extensive LED indicators for PoE diagnostics
- Hardened design for demanding environments
- Wide operating temperature range: -40°C to +80°C (-40°F to +176°F)
- Suitable for IP cameras, wireless access points, and other IEEE 802.3af/at PoE devices
