The EKPDV0336ADJ10BT Series Industrial Gigabit PoE Splitter is designed to deliver both Ethernet data and DC power to non-PoE network devices through a single Ethernet cable. Acting as a Powered Device (PD), it receives power and data from an IEEE 802.3af/at/bt-compliant PoE switch or PoE injector, separates the two signals, and provides Ethernet data through an RJ45 output port and adjustable DC power through a 5-pin terminal block. This eliminates the need for a separate power supply connection at remote network devices, helping simplify installation and reduce cabling costs.
Supporting 10/100/1000Base-T Ethernet with data transmission distances of up to 100 meters, the splitter delivers Gigabit connectivity alongside an adjustable 3–36VDC power output. Its flexible output voltage makes it suitable for powering a variety of non-PoE devices with different DC power requirements. Built-in short-circuit protection helps protect the power output, while LED indicators provide convenient PoE status and diagnostic information.
Designed for demanding industrial environments, the EKPDV0336ADJ10BT features a fanless design, rugged IP40-rated metal housing and flexible DIN-Rail or wall-mount installation. With a wide operating temperature range of -40°C to +80°C, it provides a reliable solution for industrial automation, security surveillance, transportation systems and other applications requiring flexible power delivery to non-PoE Ethernet equipment.
- Separates power and data from a single PoE input
- 1×RJ45 PoE input port for power and data
- 1×RJ45 Ethernet data output port
- Adjustable 3–36VDC power output via 5-pin terminal block
- Supports IEEE 802.3af/at/bt PoE standards, including PoE++
- Supports 10/100/1000Base-T Gigabit Ethernet
- Ethernet transmission distance up to 100 meters
- Short-circuit protection for DC power output
- LED indicators for PoE status and diagnostics
- Fanless design with rugged IP40-rated metal housing

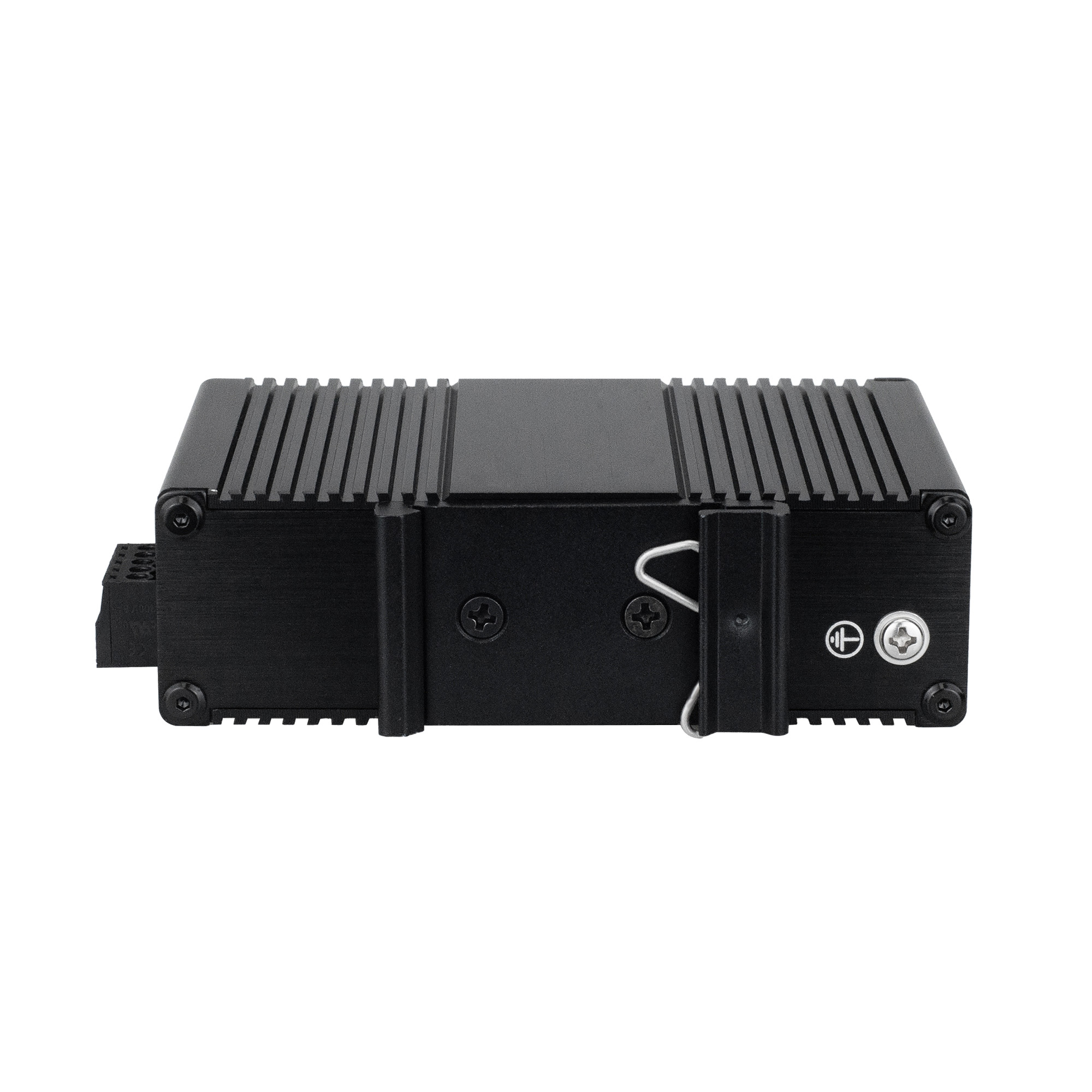

- Supports DIN-Rail and wall-mount installation
- Industrial operating temperature: -40°C to +80°C (-40°F to +176°F)
- Suitable for powering non-PoE Ethernet devices in industrial and commercial network applications
